500W Laboratory Ultrasonic Cell Disruptor For Break Cells

Item ID #

Ask a Question FAQ & Help Payment Methods Shipping Estimator Email To Us Print This Page

Description

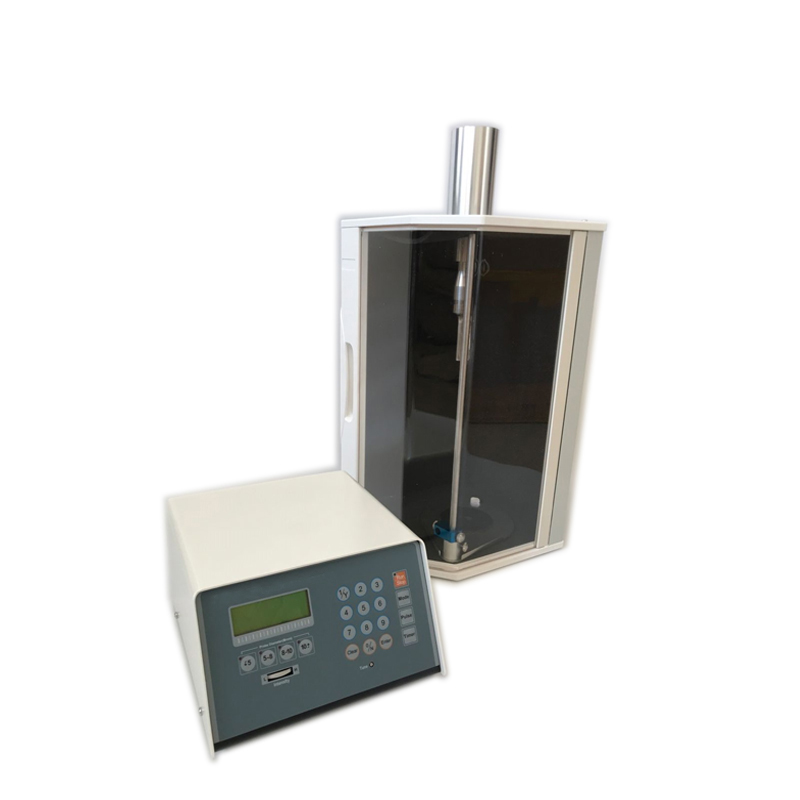

500W Laboratory Ultrasonic Cell Disruptor For Break Cells

Structure of ultrasonic cell grinder

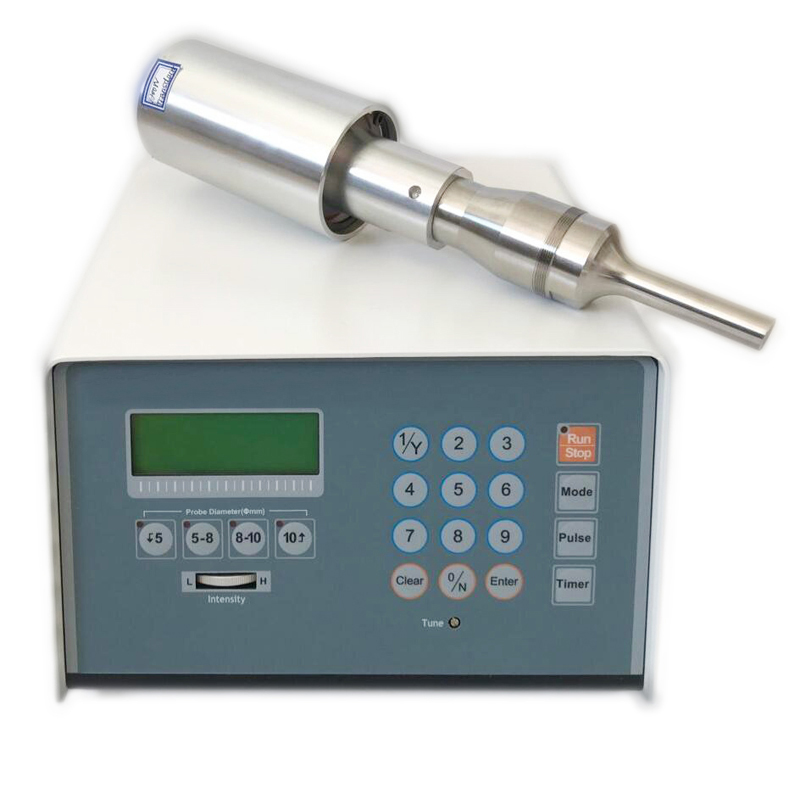

Ultrasonic cell grinder consists of ultrasonic generator and transducer (some equipped with sound isolating box)

1. Ultrasonic generator: the signal generator generates a specific frequency signal, which is the frequency of the transducer. Generally, the ultrasonic frequency used in ultrasonic equipment is 20kHz, 25kHz, 28kHz, 33khz, 40KHz, 60KHZ.

2. Transducer assembly: transducer assembly is mainly composed of transducer and horn.

3. Isolation box: can effectively reduce the noise in the process of work, keep the laboratory quiet.

Type	Power (w)	Output Amplitude	Available Converter
UCE-100UP	100	1/8″3/16″1/4″	100ul～80ml 1%～99%
UCE-150UP	150	1/8″3/16″1/4″	100ul～100ml 1%～99%
UCE-250UP	250	1/8″3/16″1/4″	100ul～200ml 1%～99%
UCE-500UP	500	1/8″3/16″1/4″1/2″	250ul～500ml 1%～99%
UCE-800UP	800	1/8″3/16″1/4″1/2″3/4″	250ul～800ml 1%～99%
