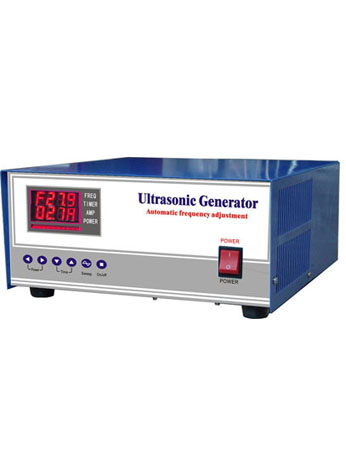

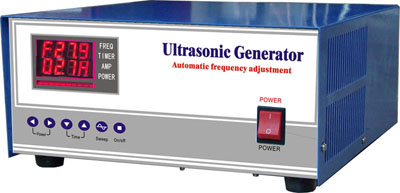

600W/28khz Ultrasonic generator
Ultrasonic Generator kit,Ultrasonic generator for cleaning,ultrasonic cleaning generator,ultrasonic power supplier specilized used for ultrasonic cleaning purpose,Auto Tracking Frequency and the best resonance point,power adjusting,timer setting.
Specifications:
Remark: Price is for Digital ultrasonic generator ONLY
|
Item |
Power |
Input voltage |
Transducer suggested |
Remark: |
|
Ultrasonic generator |
300W |
AC220V
AC110V
|
50W*6pieces |
Frequency adjustable from 20khz to 40khz
Auto Tracing or manual Adjusting Optional
Timer setting |
|
|
600W |
50W*10pieces |
|
|
900W |
50W*18pieces |
|
|
1000W |
50W*20pieces |
|
|
1200W |
50W*24pieces |
|
|
1500W |
50W*30pieces |
|
|
1800W |
50W*36pieces |
|
|
2000W |
50W*40pieces |
|
|
2400W |
50W*48pieces |
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities
Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard.
|
Manual in detail:
Working current:
Attention：the appliance can not stay above maximal current long time.
|
rating power |
300W |
600W |
900W |
1200W |
|
maximal current |
1A |
2.5A |
3.5A |
4.5A |
Environment temperature: 0-40C°
Relative humidity:40%--90%
Working frequency: 28KHz（40KHz,80 KHz,135KHz, etc）5%
Time control: 0—59 minutes 59 seconds
Range of power control: 0-100% digital control and adjustment of 16 grades
Internal overtemperature protection: 65 C°
Outer size: L x W x H = 300 x 360 x 150

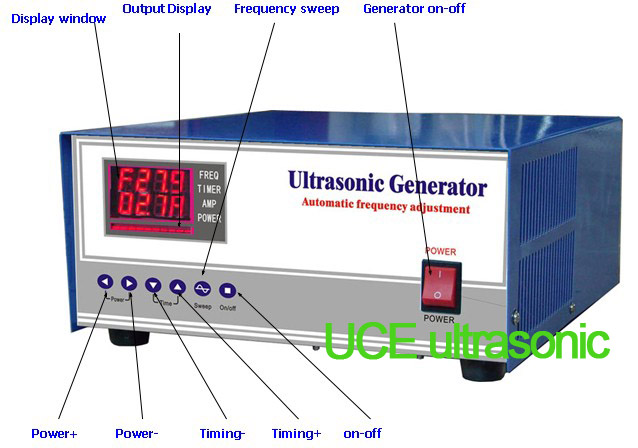

III. Instruction for panel Performance
Display window: for displaying fixed time, power, working state and faults.
1. Switch for frequency sweep: selecting normal or frequency-sweeping working state.
2. On/Off: controlling operation and pause of working state.
3. Adding fixed time: set value of working time.
4. Reducing fixed time: set value of working time.
5. Raising power: raising output power.
6. Reducing power: reducing output power.
