I. Summary of Performance:

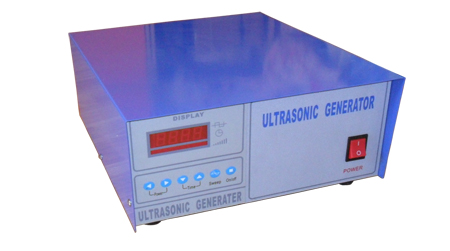

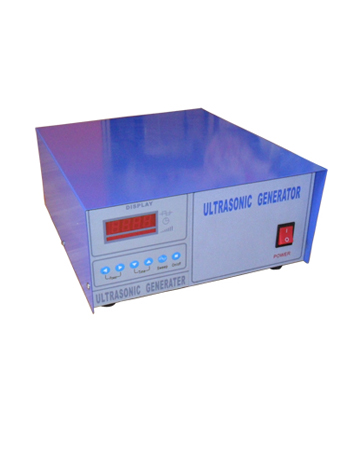

With more than 10 years research and application experience, we explored this microprocessor controlled, newly designed generator specially for ultrasonic cleaning.
The control box adopts advanced techniques, like separate-excited circuit, controlled by microcomputer, frequency automatic tracking and frequency sweeping, etc. Compared with traditional control box, it has better performances of stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of transducer in maximum. The automatic tracking of operating frequency can optimize output matching, strengthen power and raise efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time wash off the dirty uncovered by ultrasonic wave from the surface of working pieces and thus reach faster and thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over temperature protection and overcurrent protection for more reliable operation; 4-bit timer for more accurate time control to second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration at working state, so the operation is freer. The complete appliance adopts building block design. With computer fault location and display system, its operation and maintenance are more convenient. Protected by rust proof and isolated structure, this generator can work under rigid circumstances.
II. Key Technical Indexes
Working volt: 220V 10%
Working current:
Attention：the appliance can not stay above maximal current long time.
|
rating power |
300W |
600W |
900W |
1200W |
|
maximal current |
1A |
2.5A |
3.5A |
4.5A |
Environment temperature: 0-40C°
Relative humidity:40%--90%
Working frequency: 28KHz（40KHz,80 KHz,135KHz, etc）5%
Time control: 0—59 minutes 59 seconds
Range of power control: 0-100% digital control and adjustment of 16 grades
Internal overtemperature protection: 65 C°
Outer size: L x W x H = 300 x 360 x 150
III. Instruction for panel Performance
