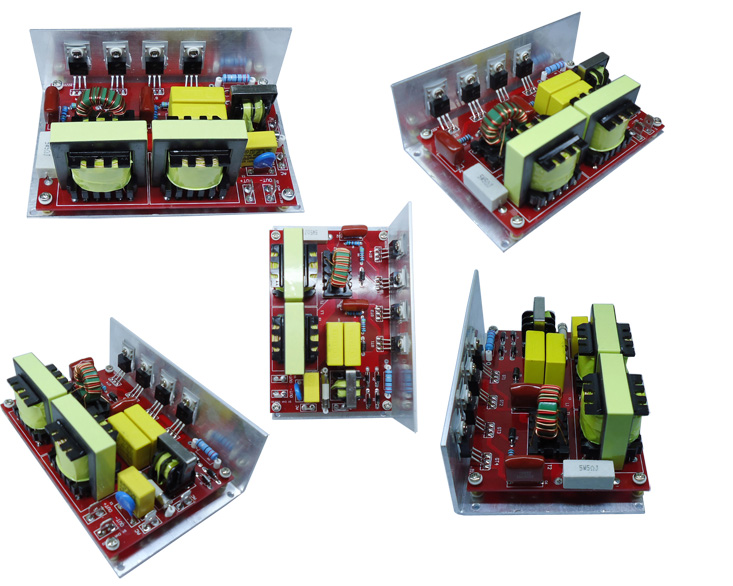

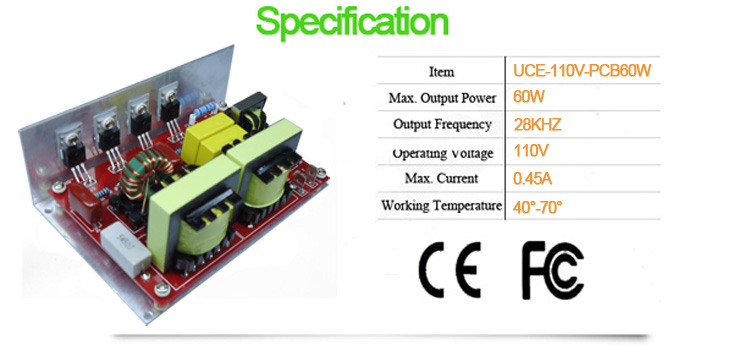

110V 28khz/60W ultrasonic pcb generator
ultrasonic pcb generator Noted:
1, the glue please choose Epoxy resin adhesive specialized for industry used
2, please make assured the transducer already been bonded well before connecting the PCB and already been with water or other liquid in the tank,and then power on
3, the thickness of stailess steel 1.5-2mm

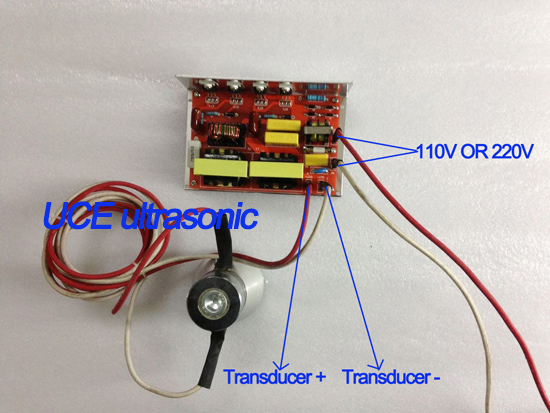

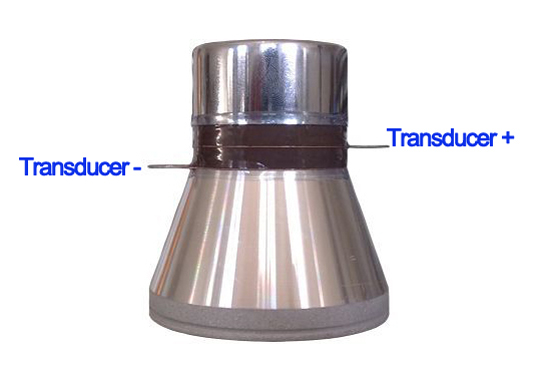

4, about the transducer,at middle of electronic chip is positive pole,another one is negative.
5, transducer and PCB in parallel connection
6, upon bonding 24-48 hours and then let the machine power on.
Manual in detail:
Payment terms:
Prepaid by Bank/ Paypal/ Western union are acceptable.
Shipping Indications:
HKDHL: 3-7days
BEIJINGDHL: 3-5days
UPS:3-5days
FEDEX:1-5days
HKFEDEX:3-7days
EMS:7-15days
Chinaair post (within 2Kg): 15-18days
ChinaPost Air Paracel: 35-60days (above 2kg)
Shipping Address:
If your shipping address is no register at Paypal or you paid us by bank,please feel free email to us uce@ultra-piezo.com for address & phone &receipt name in detail to assure the material will be arrived you in time and safely,we count on your cooperation.
110V 28khz/60W ultrasonic pcb generator
Products Warranty:
The material which we sales will be for one year free maintain if caused by quality itself problem,and to sure operation in correct methods.
If the products damaged owing to your uncorrected use,we will refuse the returned and will be required charge for maintain or replace,please understand.
Don’t mail anything back to us before without any communication with our service,thank you!
