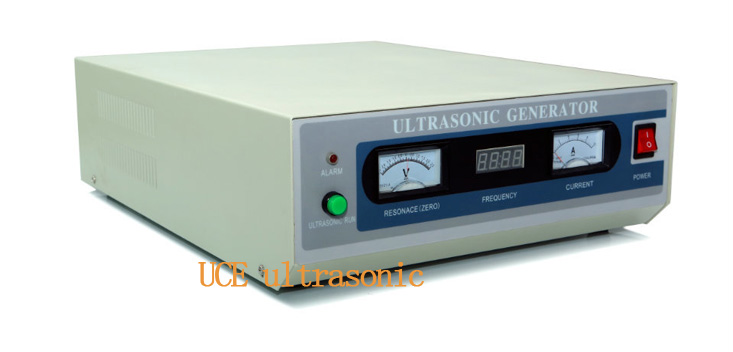

20khz/1200W ultrasonic plastic welding generator

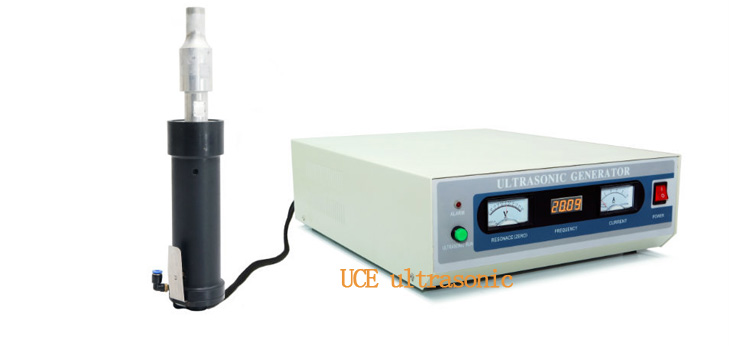

The principle of ultrasonic welding by the ultrasonic generator 50/60 Hz current is converted into 15,20,30 or 40 kHz energy. The high frequency electrical energy is converted by the transducer is again converted into a mechanical movement of the same frequency, followed by the mechanical motion transmitted to the weld head through a set can change the amplitude modulator means. The welding head will be received by the vibration energy transmitted to the engaging portion of the workpiece to be welded, in the region, the vibration energy is by friction by conversion into heat, the plastic melts. Ultrasonic can not only be used to weld the hard thermoplastic fabrics and films can also be processed.



Power: 500W 1000W  1200W  1500W  1800W  2000W

Frequency: 15KHz  18KHz  20KHz  25KHz  28KHz   35KHz  40KHz

Applications:



Ultrasonic plastic welding generator is widely used in auto industry, electron industry, medical treatment industry, office supply, packaging industry, and toy industry, etc. For example,



Plastic parts of automobile body: car door, automobile instrument, car light and mirror, sun visor, interior trim part, filter, etc.



Reflectorized material:reflectorized spike, fender-guard, inhaul cable, plastic filter for motorcycle, radiator, oil reservoir, oil cup, water tank, fuel tank, air hose, exhaust purifier, and tray filter board, etc.



Plastic electron: prepayment water meter, ammeter, communication apparatus, cordless telephone, accessories of mobile phone, cover of mobile phone, battery case, charger, valve controlled seal maintenance lead-add battery, 3-inch floppy, USB flash disk, SD card, CF card, USB plug-in board, bluetooth, etc.



Toy & stationery: documents folder, photo album, folding box, PP cavity board, pen cover, ink box, toner cartridge, etc.



Medical & daily use: watch, kitchen ware, oral liquid bottle cap, drip bottle cap, anti counterfeit bottle cap, cosmetic bottle cap mobile phone accessories, gold soft brush, toilet articles, children appliance, air mattress, hanger, knife handle, gardening appliance, sanitary fittings, sprinkler, shower head, coffee pot, washing machine, air dryer, electric iron, electric kettle, cleaner, metal cover of loudspeaker box, construction grating, etc.
