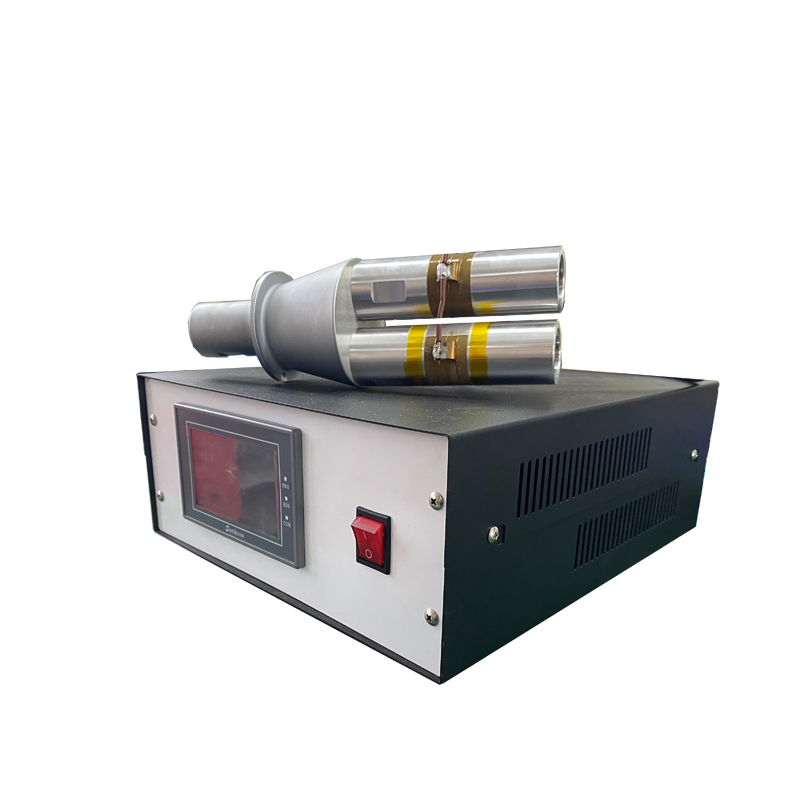

The ultrasonic generator has the characteristics of compact structure, convenient installation, simple operation and high cost performance. The ultrasonic generator can automatically, quickly, accurately and continuously perform the ultrasonic driving work.

1: The ultrasonic generator can monitor the working frequency and power of high-power ultrasonic system.

2: It can adjust various parameters in real time according to different requirements of users, such as power, amplitude, running time, etc.



characteristic:

Automatic frequency tracking: once the equipment has completed the initial setting, it can work continuously without adjusting the generator.

Automatic amplitude control: when the load changes in the working process of the transducer, it can automatically adjust the driving characteristics to ensure the stable amplitude of the ultrasonic tool head.

System protection: when the system works in an unsuitable operating environment, the generator will stop working and give an alarm to protect the equipment from damage.

Amplitude adjustment: the amplitude can be increased or decreased instantaneously in the working process. The setting range of amplitude: 0% ~ 100%.

Automatic frequency search: it can automatically measure and store the working frequency of the tool head.

UCE-WTI-100W	100W	28khz/40khz	110V or220V
UCE-WTI-300W	300W	28khz/40khz	110V or220V
UCE-WTI-500W	500W	15KHz/20khz/28khz/40khz	110V or220V
UCE-WTI-900W	900W	15KHz/20khz/28khz	110V or220V
UCE- WTI-1500W	1500W	15KHz/20khz	110V or220V
UCE- WTI-1800W	1800W	15KHz/20khz	220V
UCE- WTI-2000W	2000W	15KHz/20khz	220V
UCE- WTI-2600W	2600W	15KHz	220V
UCE- WTI-3200W	3200W	15KHz	220V
UCE- WTI-4200W	4200W	15KHz	220V
