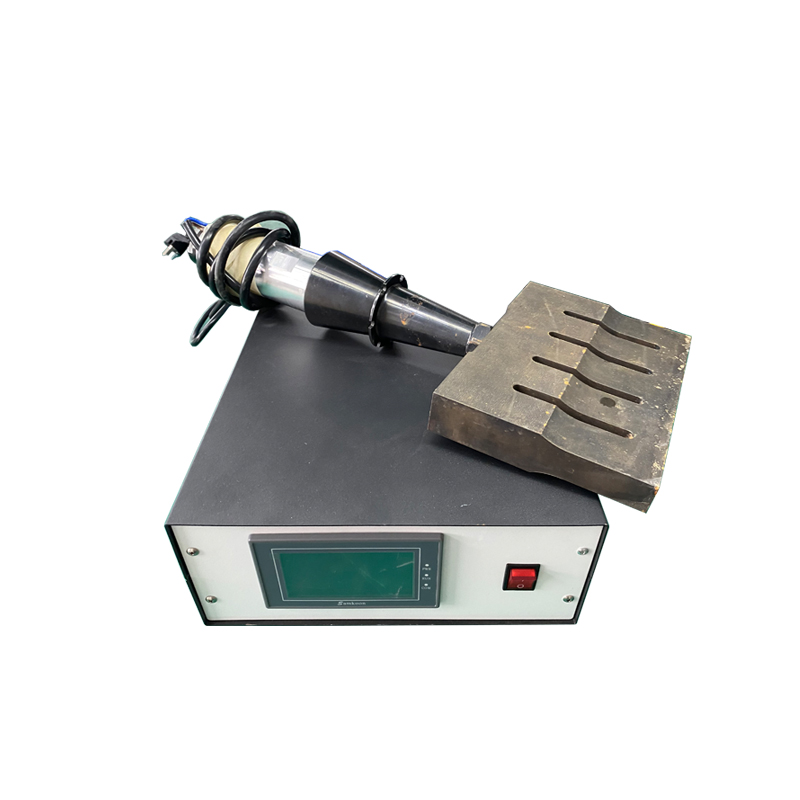

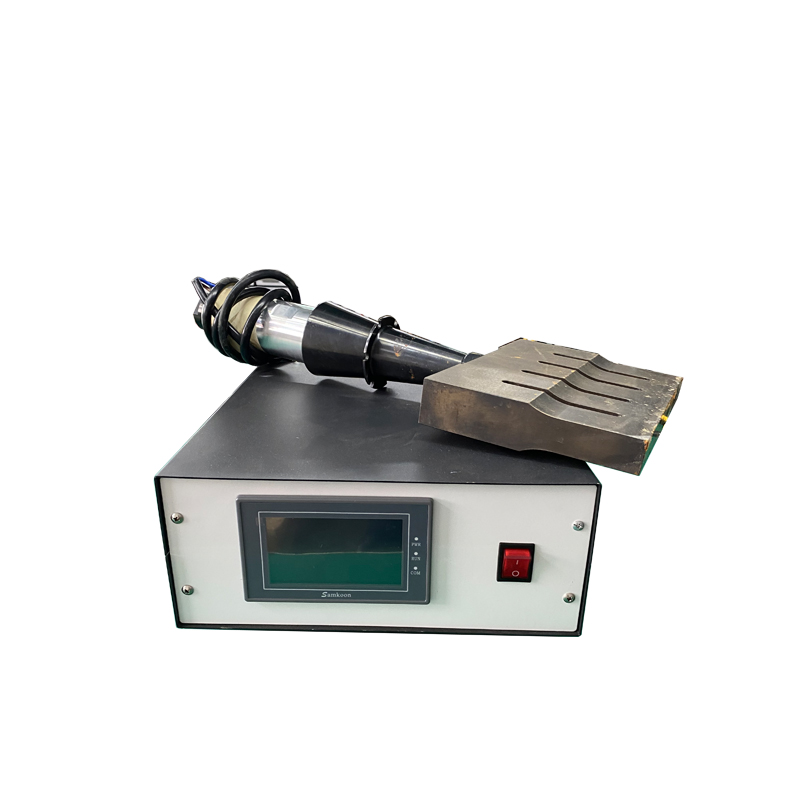

20khz Ultrasonic Welding Generator Transducer Horn
Ultrasonic welding generator uses high-frequency vibration wave to transmit to the surface of two objects to be welded. Under the condition of pressure, the surface of two objects rubs against each other to form fusion between molecular layers. Ultrasonic welding converts 50 / 60 Hz current into 15, 20, 30 or 40 kHz power through ultrasonic generator, The converted high-frequency electric energy is converted into mechanical motion of the same frequency again through the transducer, and then the mechanical motion is transferred to the welding head through a set of amplitude transformer device which can change the amplitude. The welding head transmits the received vibration energy to the joint of the workpiece to be welded. In this region, the vibration energy is converted into heat energy by friction, and the plastic is melted. Ultrasound can be used not only to weld hard thermoplastics, but also to process fabrics and films, When the ultrasonic wave acts on the contact surface of thermoplastic plastics, it will produce tens of thousands of high-frequency vibrations per second. This kind of high-frequency vibration reaches a certain amplitude and transmits the ultrasonic energy to the welding area through the upper weldment. Due to the large sound resistance of the welding area, that is, the interface between the two welding joints, it will produce local high temperature. However, the ultrasonic welding machine in the existing technology is prone to interval In addition, the continuous work can not be carried out, and there is no special transportation equipment, resulting in slow work efficiency. At the same time, it needs to consume manpower for operation and supervision. For this reason, we propose a continuous welding ultrasonic welding machine.

UCE-WTI-100W	100W	28khz/40khz	110V or220V
UCE-WTI-300W	300W	28khz/40khz	110V or220V
UCE-WTI-500W	500W	15KHz/20khz/28khz/40khz	110V or220V
UCE-WTI-900W	900W	15KHz/20khz/28khz	110V or220V
UCE- WTI-1500W	1500W	15KHz/20khz	110V or220V
UCE- WTI-1800W	1800W	15KHz/20khz	220V
UCE- WTI-2000W	2000W	15KHz/20khz	220V
UCE- WTI-2600W	2600W	15KHz	220V
UCE- WTI-3200W	3200W	15KHz	220V
UCE- WTI-4200W	4200W	15KHz	220V

20khz Ultrasonic Welding Generator Transducer Horn
