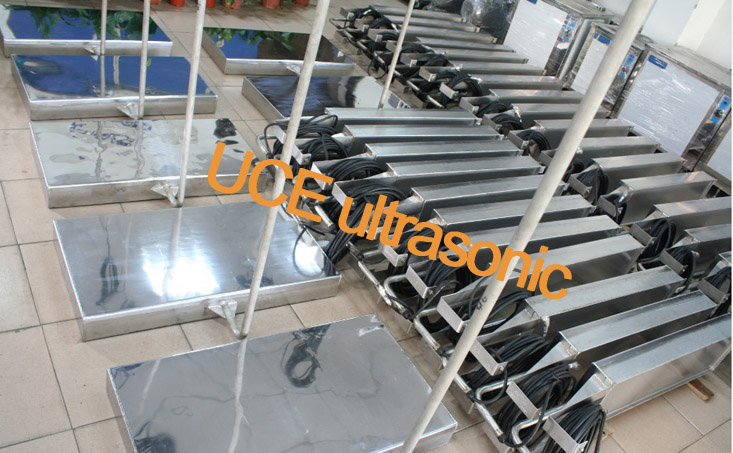

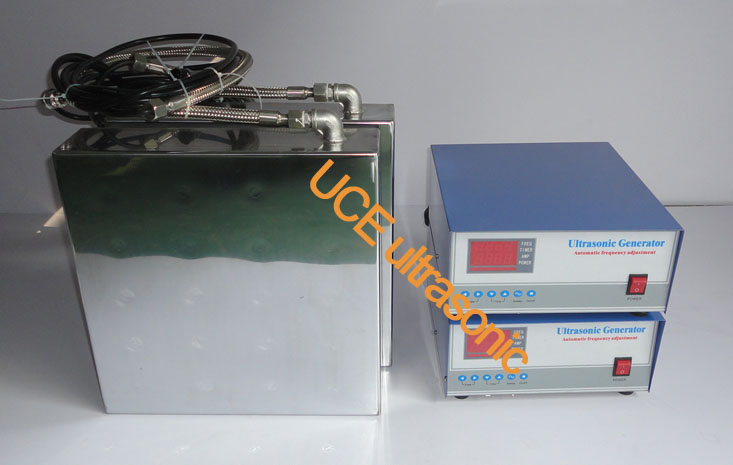

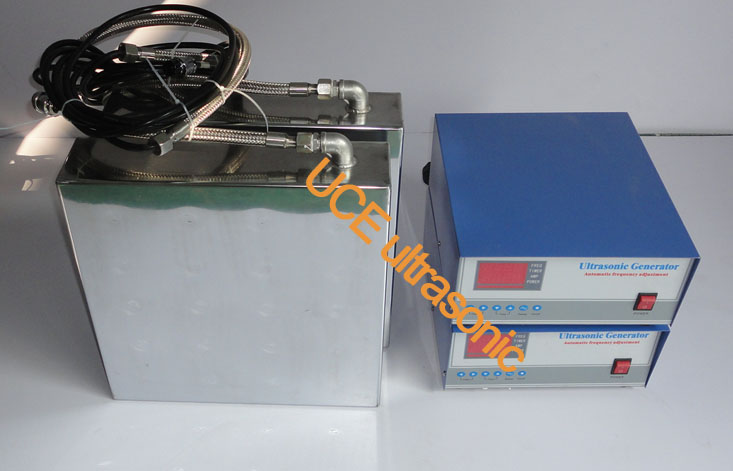

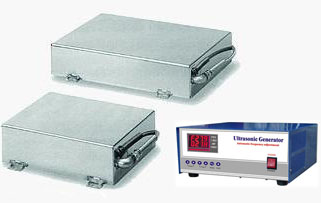

1000W Immersible Ultrasonic cleaner
immersible ultrasonic transducers Mounting types Technical Information:
Type Description
A
Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B
Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C
Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D
Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E
Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F
Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G
Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H
Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X
Non-standard mounting
Type
|
Diamention(mm)
|
Frequency (Khz)
|
Power(W)
|
Ultrasonic Transducer
|

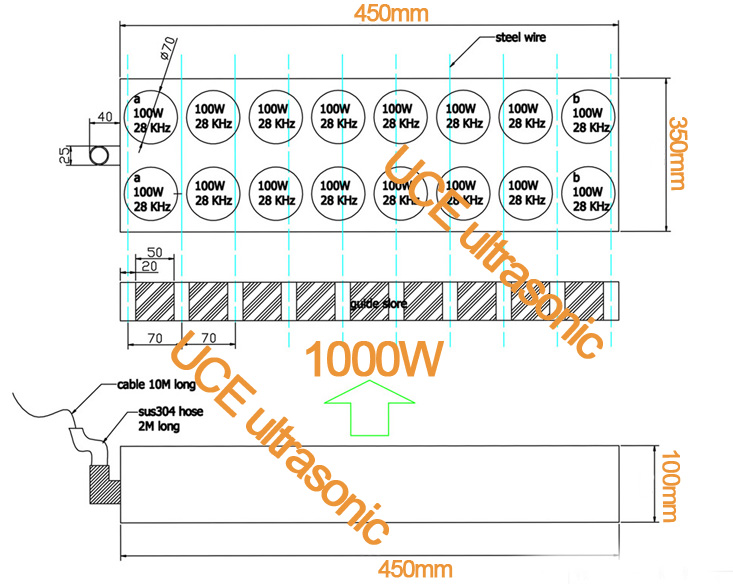

UCE-UITP1000W
|
450*350*100
|
25,28,33,40,80,130
|
1000
|
20
|
1000W Immersible Ultrasonic cleaner
