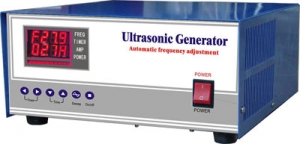

ultrasonic sound generator

Specifications:
Remark: Price is for Digital  ultrasonic generator ONLY

Item	Power	Input voltage	Transducer suggested	Remark:
Ultrasonic generator	300W	AC220V   AC110V	50W*6pieces	Frequency adjustable from 20khz to 40khz   Auto Tracing or manual Adjusting Optional     Timer setting
	600W		50W*10pieces
	900W		50W*18pieces
	1000W		50W*20pieces
	1200W		50W*24pieces
	1500W		50W*30pieces
	1800W		50W*36pieces
	2000W		50W*40pieces
	2400W		50W*48pieces
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard.

Manual in detail:
Working current:
Attention：the appliance can not stay above maximal current long time.

rating power	300W	600W	900W	1200W
maximal current	1A	2.5A	3.5A	4.5A

Environment temperature: 0-40C°
Relative humidity:40%--90%
Working frequency: 28KHz（40KHz,80 KHz,135KHz, etc）5%
Time control:      0—59 minutes 59 seconds
Range of power control: 0-100%   digital control and adjustment of 16 grades
Internal overtemperature protection: 65 C°
Outer size:  L x W x H = 300 x 360 x 150
