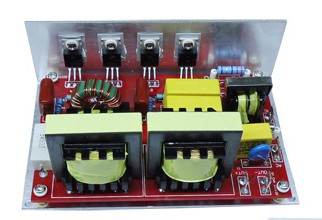

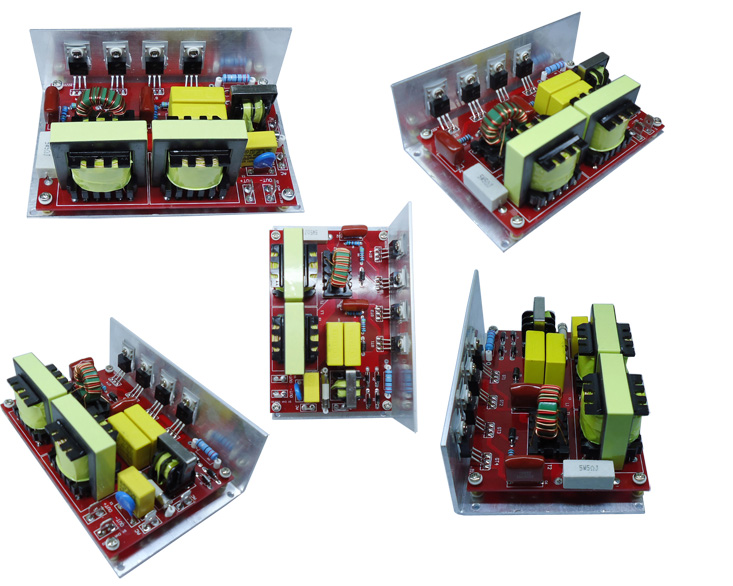

ultrasonic pcb generator Noted:
1, the glue please choose Epoxy resin adhesive specialized for industry used
2, please make assured the transducer already been bonded well before connecting the PCB and already been with water or other liquid in the tank,and then power on
3, the thickness of stailess steel 1.5-2mm
4, about the transducer,at middle of electronic chip is positive pole,another one is negative.

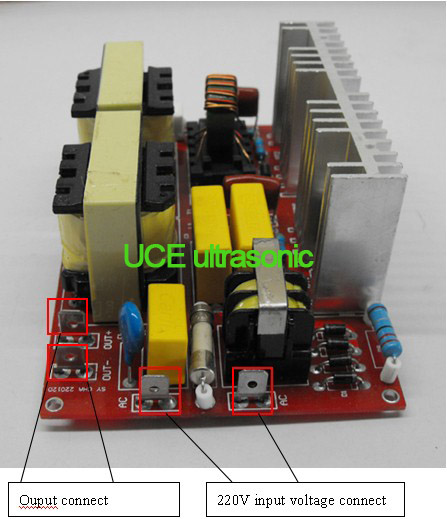

5, transducer and PCB in parallel connection
6, upon bonding 24-48 hours and then let the machine power on.
