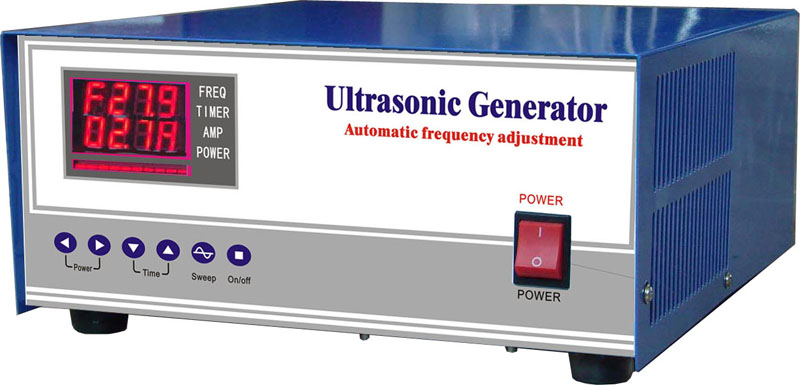

1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator
1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator,1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator,1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator,1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator,120
Item ID #
UCEultrasonic: |Quality Product|Competitive price|Fast delivery|Good service|
Ask a Question FAQ & Help Payment Methods Shipping Estimator Email To Us Print This Page
List Price: $988.00€988.00£609.60AU$934.06CA$935.83S$1218.70
Sale: $833.00€833.00£513.96AU$787.52CA$789.02S$1027.51
Quantity: Unit(s)
Description

1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator

1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator
Specifications:

Remark: Price is for Digital  ultrasonic generator ONLY
Item Power Input voltage Transducer suggested Remark:
Ultrasonic generator 300W AC220V

AC110V		 50W*6pieces Frequency adjustable from 20khz to 40khz

Auto Tracing or manual Adjusting Optional

Timer setting
  600W 50W*10pieces
  900W 50W*18pieces
  1000W 50W*20pieces
  1200W 50W*24pieces
  1500W 50W*30pieces
  1800W 50W*36pieces
  2000W 50W*40pieces
  2400W 50W*48pieces
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities
Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard.
Manual in detail:
Working current:
Attention：the appliance can not stay above maximal current long time.

rating power 300W 600W 900W 1200W
maximal current 1A 2.5A 3.5A 4.5A
1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator
Environment temperature: 0-40C°
Relative humidity:40%--90%
Working frequency: 28KHz（40KHz,80 KHz,135KHz, etc）5%
Time control:      0—59 minutes 59 seconds
Range of power control: 0-100%   digital control and adjustment of 16 grades
Internal overtemperature protection: 65 C°
Outer size:  L x W x H = 300 x 360 x 150

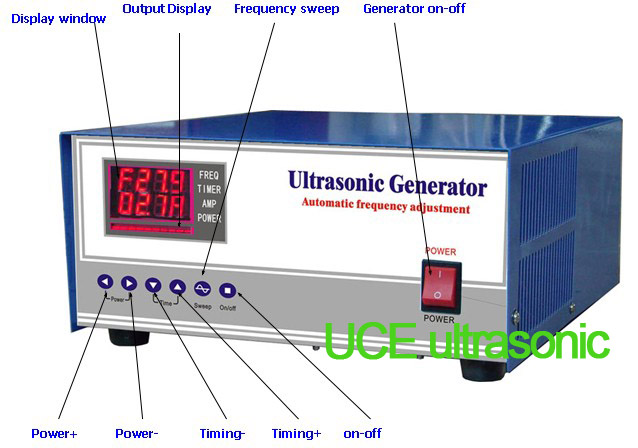

III. Instruction for panel Performance

Display window: for displaying fixed time, power, working state and faults.
1.      Switch for frequency sweep: selecting normal or frequency-sweeping working state.
2.      On/Off: controlling operation and pause of working state.
3.      Adding fixed time: set value of working time.
4.      Reducing fixed time: set value of working time.
5.      Raising power: raising output power.
6.      Reducing power: reducing output power.
1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator
1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator
1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator
1200W 40KHZ/80KHZ Dual-frequency Ultrasonic cleaning generator
