2000W/40khz Ultrasonic Cleaning Generator
2000W/40khz Ultrasonic Cleaning Generator,digital ultrasonic power supplier for cleaner,ultrasonic generator for ultrasonic transducer, High power Ultrasonic generator for cleaning,ultrasonic PCB Circuit,ultrasonic signal generator.
Item ID #OT2000
UCEultrasonic: ||
List Price: $550.00€550.00£339.35AU$519.97CA$520.96S$678.43
Sale: $395.00€395.00£243.72AU$373.43CA$374.14S$487.23
Quantity: Unit(s)
Description

2000W/40khz Ultrasonic Cleaning Generator

Ultrasonic Generator for cleaner,digital ultrasonic power supplier for cleaner,ultrasonic generator for ultrasonic transducer, High power Ultrasonic generator for cleaning,ultrasonic PCB Circuit,ultrasonic signal generator,digital ultrasonic cleaning generator,ultrasonic generator kit,ultrasonic kit
2000W/40khz Ultrasonic generator
Specifications:
Remark: Price is for Digital  ultrasonic generator ONLY
Item Power Input voltage Transducer suggested Remark:
Ultrasonic generator 300W AC220V

AC110V

50W*6pieces Frequency adjustable from 20khz to 40khz

Auto Tracing or manual Adjusting Optional

Timer setting
  600W 50W*10pieces
  900W 50W*18pieces
  1000W 50W*20pieces
  1200W 50W*24pieces
  1500W 50W*30pieces
  1800W 50W*36pieces
  2000W 50W*40pieces
  2400W 50W*48pieces
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities
Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard.

Manual in detail:
Working current:
Attention:the appliance can not stay above maximal current long time.
rating power 300W 600W 900W 1200W
maximal current 1A 2.5A 3.5A 4.5A



Working volt: 220V   10%
Working current: 2 A
Environment temperature: 0-40C
Relative humidity:40%--90%
Working frequency: 28--40KHz(80 KHz, etc)      5%
Time control:      0—59 minutes 59 seconds
Range of power control: 0-100%   digital control and adjustment of 16 grades
Internal overtemperature protection: 65 C°
Outer size:  H x W x L = 160*360*500

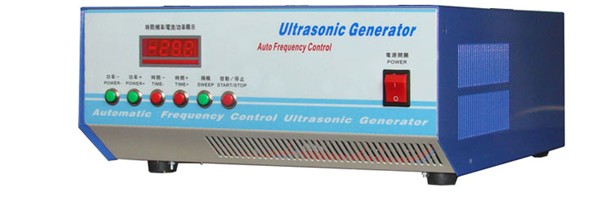

III. Instruction for panel Performance








Display window: for displaying fixed time, power, working state and faults.
1.      Switch for frequency sweep: selecting normal or frequency-sweeping working state.
2.      On/Off: controlling operation and pause of working state.
3.      Adding fixed time: set value of working time.
4.      Reducing fixed time: set value of working time.
5.      Raising power: raising output power.
6.      Reducing power: reducing output power.

Payment terms:
Prepaid by Bank/ Paypal/ Western union are acceptable

Shipping Indications:
HKDHL: 3-7days
BEIJINGDHL: 3-5days
UPS:3-5days
FEDEX:1-5days
HKFEDEX:3-7days
EMS:7-15days
Chinaair post (within 2Kg): 15-18days
ChinaPost Air Paracel: 35-60days (above 2kg)


Shipping Address:
If your shipping address is no register at Paypal or you paid us by bank,please feel free email to us uce@ultra-piezo.com for address & phone &receipt name in detail to assure the material will be arrived you in time and safely,we count on your cooperation.


Products Warranty:
The material which we sales will be for one year free maintain if caused by quality itself problem,and to sure operation in correct methods.
If the products damaged owing to your uncorrected use,we will refuse the returned and will be required charge for maintain or replace,please understand.
Don’t mail anything back to us before without any communication with our service,thank you!
