The importance of frequency tracking: it is a difficult problem for the application of ultrasonic machining technology for a long time. Without frequency tracking, the transducer will not work continuously. Because the changing working conditions often cause the transducer resonance frequency changes, so that the vibration of the system detuning, amplitude reduction. At the same time, when the transducer works in the detuning state, the temperature of the acoustic system will rise and the amplitude will drop exponentially, resulting in a vicious circle, which not only affects the processing speed, but also affects the processing quality, and shortens the service life of the ultrasonic generator, and even causes the transducer to burn out due to overheating.



Manufacturers direct ultrasonic generator, ultrasonic power supply, ultrasonic electric box, ultrasonic control box, ultrasonic control cabinet, ultrasonic power source, ultrasonic power box, ultrasonic generator power supply, ultrasonic vibrator, vibration box

Item	Power	Input voltage	Transducer suggested	Remark:

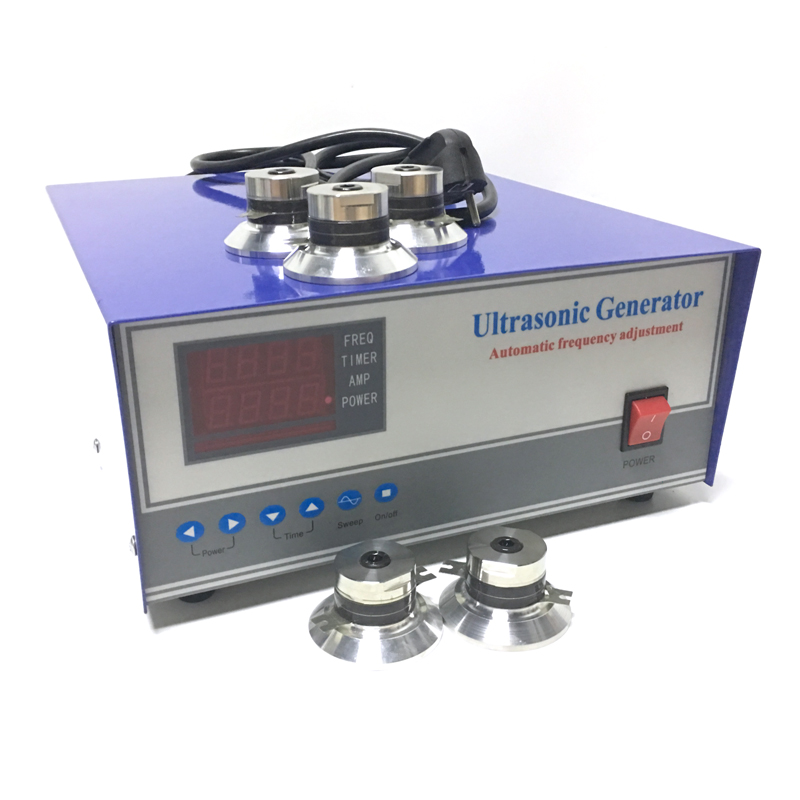

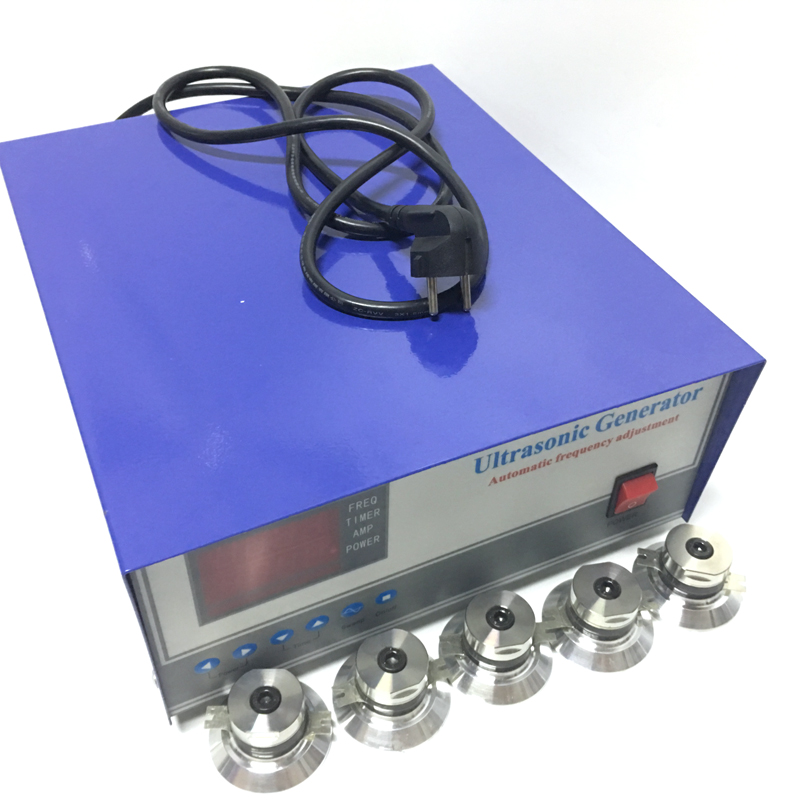

Ultrasonic generator	300W	AC220V   AC110V	50W*6pieces	Frequency adjustable from 20khz to 40khz   Auto Tracing or manual Adjusting Optional     Timer setting
	600W		50W*10pieces
	900W		50W*18pieces
	1000W		50W*20pieces
	1200W		50W*24pieces
	1500W		50W*30pieces
	1800W		50W*36pieces
	2000W		50W*40pieces
	2400W		50W*48pieces
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard.
