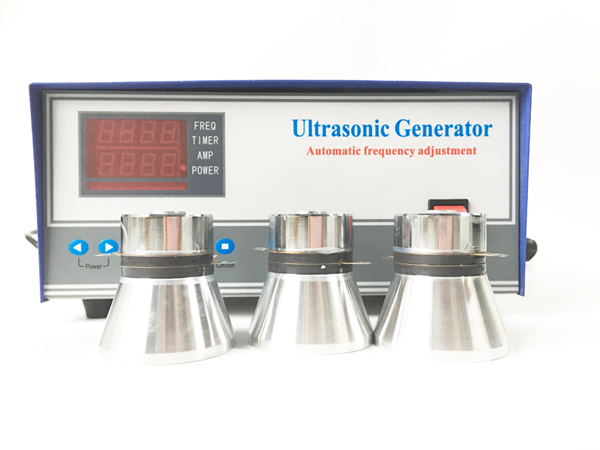

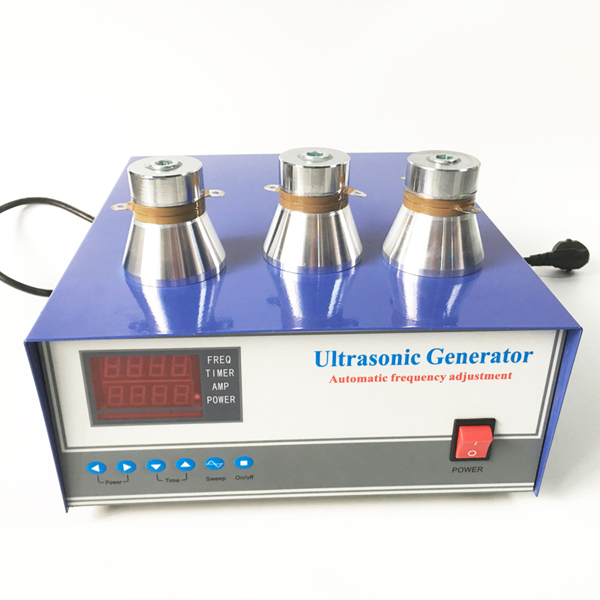

2019 Ultrasonic Generators for Industial Cleaning Applications
Basic parameters of ultrasonic generator:
Input voltage: 220V + 10%
(2) Working current can be referred to: 600W: 2A; 900W: 3A; 1200W: 3.5A; 1500W: 4A; 1800W: 5A; 2100W: 5.5A; 2400W: 6A; 2700W: 7A; 3000W: 7.5A.
3. Frequency: 17-40KHZ, customers can purchase according to their needs.
4. Ambient working temperature: 0-40 degree, 1 high internal temperature: 65 degrees.
5. Weight: 10-11KG
Color: grey white
Work humidity: 40% - 90%
Note:
First of all, check the frequency of the occurrence certificate and the ultrasonic vibration plate you use, the frequency of the transducer on the cleaning machine is consistent;
(2) Correctly connect the positive and negative poles of the load. Note: Usually the negative pole is connected with the groove of the ultrasonic cleaning machine or the stainless steel plate of the vibrating plate.
3. The ultrasonic generator is connected to the 220V power supply, and the power supply needs reliable grounding.
(4) Multiple generators in a single cell are used at the same time. Please adjust 1A-3A according to the rated current of power to use. The frequency of multiple generators should not deviate too much, for example, 28K+0.3K.
_Take a long lead: Open the cover, loosen the inductance screw with M7 sleeve, so that the magnetic core can be lifted up and down, and only one piece can be left on both sides of the intermediate gasket.
_, the second step: start, the panel on the Delicious air switch to "ON" position, see the ammeter current display;
Step third step: pull up the core and lift it up to observe the current. The two case is the increase in current and the decrease in current. One situation: the current rises, observe the current for many years, see if the current for many years is close to the working current, if close, then increase the gasket until close to the working current; if the current for many years does not reach the working current, can be far ahead through the control board or a second blue potentiometer, namely W1 or W2, appropriate slight. Adjust the frequency and then pull it up until the location of the current is close to the working current.
Type
|
Power(W)
|
Frequency (KHz)
|
Transducer numbers
|
Size
|
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
|
UCE-NT300
|
300W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
3-6
|
300x360x150
|
UCE-NT600
|
600W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
6-12
|
300x360x150
|
UCE-NT900
|
900W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
9-18
|
300x360x150
|
UCE-NT1000
|
1000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
10-20
|
300x360x150
|
UCE-NT1200
|
1200W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
12-24
|
300x360x150
|
UCE-NT1500
|
1500W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
15-30
|
300x360x150
|
UCE-NT1800
|
1800W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
18-36
|
300x360x150
|
UCE-NT2000
|
2000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
20-40
|
300x360x150
|
UCE-NT2400
|
2400W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
24-48
|
300x360x150
|
UCE-NT3000
|
3000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
50-60
|
300x360x150
|
High Frequency
|
300W-1200W
|
65-80khz
|
High Frequency
|
300W-1200W
|
120-135khz
|
