The ultrasonic cleaning power supply adopts the IGBT power module with the best voltage and current characteristics as the switch output device, and adopts the "self-adaptive indefinite one-way frequency sweeping" algorithm exclusively developed in China. In addition to the characteristics of stable output, simple operation and good controllability, due to the special algorithm, the transducer has long service life and good cleaning effect.



Generally speaking, the load of ultrasonic cleaning is a transducer array composed of multiple sandwich transducers. After cementation, the frequency distribution is within a certain range. At present, the industry usually adopts two methods. One is to use the "frequency tracking" technology to find a working point and work near the working point according to a certain algorithm (most of the time is based on the output power). One is to use frequency sweeping technology, specify a bandwidth, and scan the frequency modulated signal back and forth in the bandwidth of the transducer array.





The surface of the ultrasonic power supply in the form of "frequency tracking" seems to work normally. However, because the cleaning transducer is composed of several single transducers cemented, some parameters of the transducer will change greatly after cementation (considering the mechanical coupling coefficient). In actual tracking, only part of the characteristics are close to the requirements of the tracking algorithm In order to achieve a certain cleaning effect, it is necessary to adjust the output power of the power supply, which results in abnormal heating and replacement of some transducers The steel plate on the vibration surface of the energy absorber was damaged by cavitation corrosion soon.

Item	Power	Input voltage	Transducer suggested	Remark:

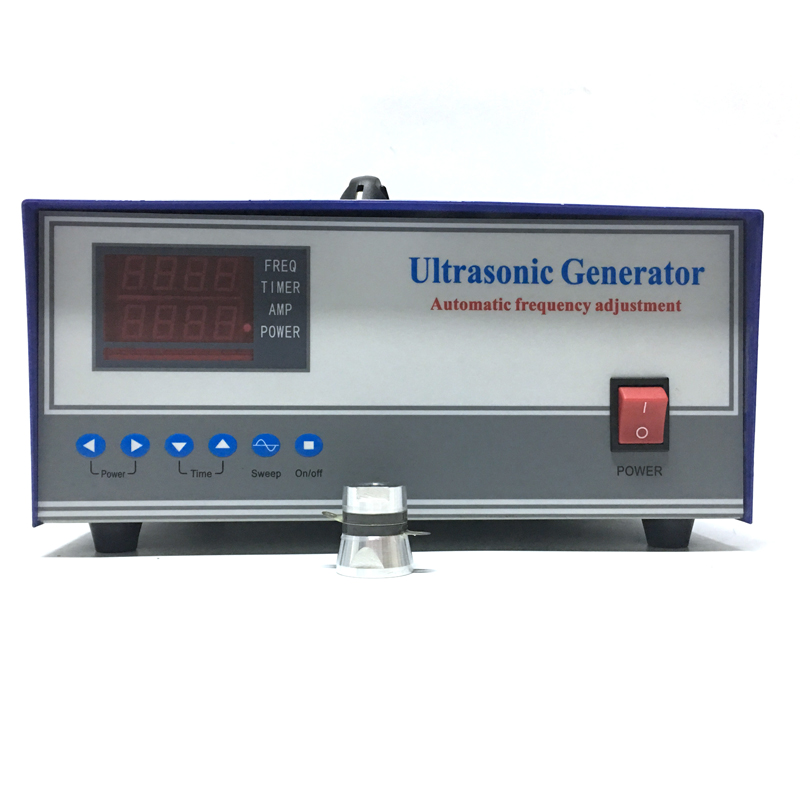

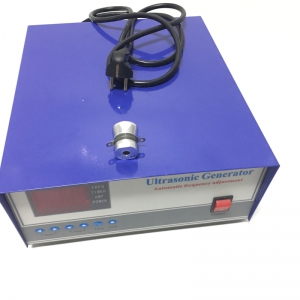

Ultrasonic generator	300W	AC220V   AC110V	50W*6pieces	Frequency adjustable from 20khz to 40khz   Auto Tracing or manual Adjusting Optional     Timer setting
	600W		50W*10pieces
	900W		50W*18pieces
	1000W		50W*20pieces
	1200W		50W*24pieces
	1500W		50W*30pieces
	1800W		50W*36pieces
	2000W		50W*40pieces
	2400W		50W*48pieces
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard.
