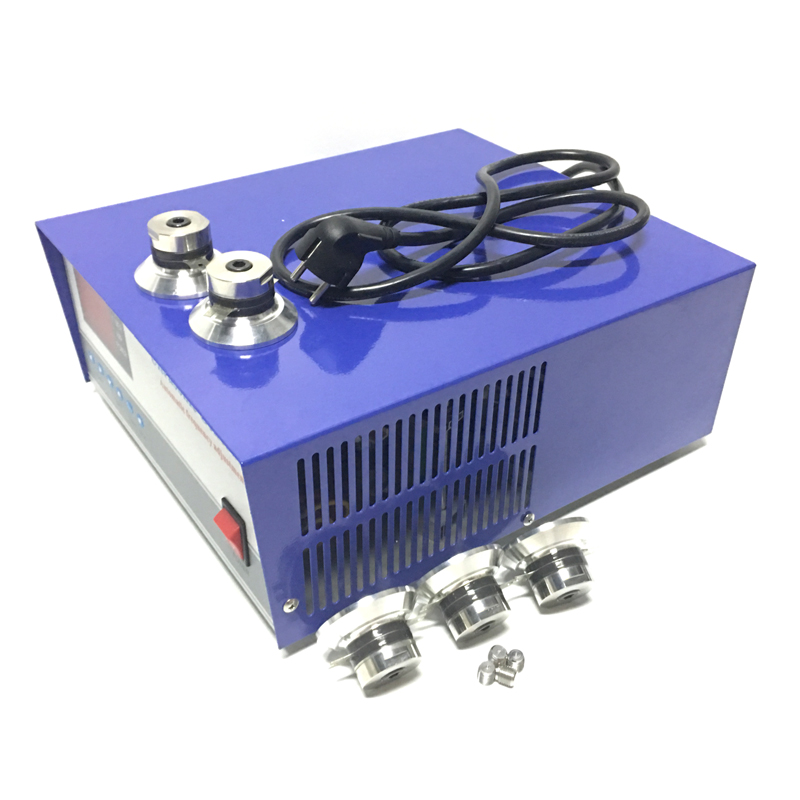

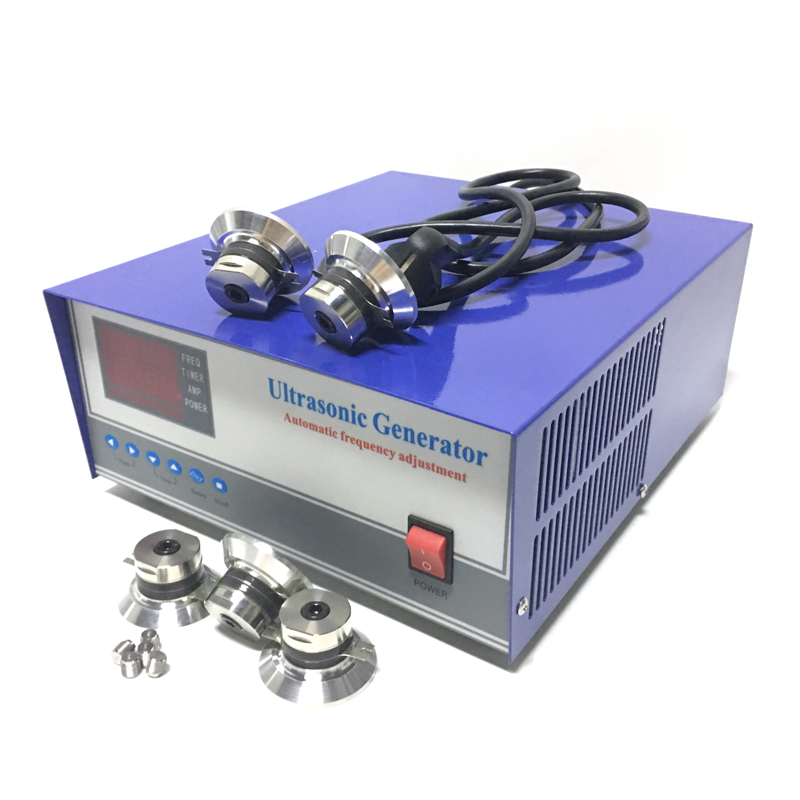

28khz Multifunctional ultrasonic cleaning generator
Ultrasonic cleaning machine company is mainly engaged in ultrasonic cleaning, welding, beauty and other related power supply, and continuously delivers high-performance products for the majority of users: its power is strong, cleaning force is uniform, the function is up to more than 90, the product category is up to more than 30, invention, utility model, appearance design patent and computer software copyright are up to more than 100.
4) When ultrasonic wave propagates in liquid medium, it can produce strong impact and cavitation on the interface. 3) Ultrasonic can produce reflection, interference, superposition and resonance.
2) Ultrasound can transfer a lot of energy.
1) Ultrasonic wave can propagate effectively in gas, liquid, solid, solid melt and other media. Ultrasonic has the following characteristics:
Ultrasonic generator ultrasonic generator to generate a specific frequency signal, this principle has the advantages of linear power supply circuit: it does not strictly require circuit matching, allowing the working frequency to change continuously and rapidly. Advantages of switching power supply circuit: high conversion efficiency, so high-power ultrasonic power supply adopts this form. Power supply and switching circuit.
Item |
Power |
Input voltage |
Transducer suggested |
Remark: |
Ultrasonic generator |
300W |
AC220V
AC110V
|
50W*6pieces |
Frequency adjustable from 20khz to 40khz
Auto Tracing or manual Adjusting Optional
Timer setting |
|
600W |
50W*10pieces |
|
900W |
50W*18pieces |
|
1000W |
50W*20pieces |
|
1200W |
50W*24pieces |
|
1500W |
50W*30pieces |
|
1800W |
50W*36pieces |
|
2000W |
50W*40pieces |
|
2400W |
50W*48pieces |
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities
Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard. |
