In addition, for the application of ultrasonic cleaning machine, in the case of industrial application, whether the frequency is large or small, or the capacitance is high or low, it is generally necessary to consider its application request in the process of marriage, so as to better carry out the maintenance and protection of the equipment. Then, in the time of operation, it can be possible Choose the matching power supply and power cord.



Ultrasonic cleaning power supply is divided into self excitation power supply and other excitation power supply according to the design. There is no signal source in the self-excited circuit, which integrates the oscillation, power amplifier, output transformer and transducer to form a closed-loop circuit. When the circuit meets the conditions of amplitude and phase feedback, it forms an oscillator with power amplification. And resonates on the mechanical resonance frequency of the transducer. The circuit consists of two parts: signal source and signal amplification. The signal source part adopts the signal generation and control part with CPU as the core to generate square wave signal and supply it to the signal amplification circuit; the signal amplification part amplifies the signal generated by the signal source and outputs it to the ultrasonic transducer. The important reason for the different transmission efficiency and output voltage of ultrasonic circuit is the different power supply. At present, the mainstream ultrasonic power supply in the market only samples the power frequency current, so it is unable to accurately control the ultrasonic output power; the ultrasonic frequency adopts fixed frequency output or sweeps with a given frequency bandwidth, so the frequency of this form of power supply will not change with the transducer parameters. The mainstream ultrasonic generator has no communication function, so it can not be used as a component in the integrated system.

Item	Power	Input voltage	Transducer suggested	Remark:

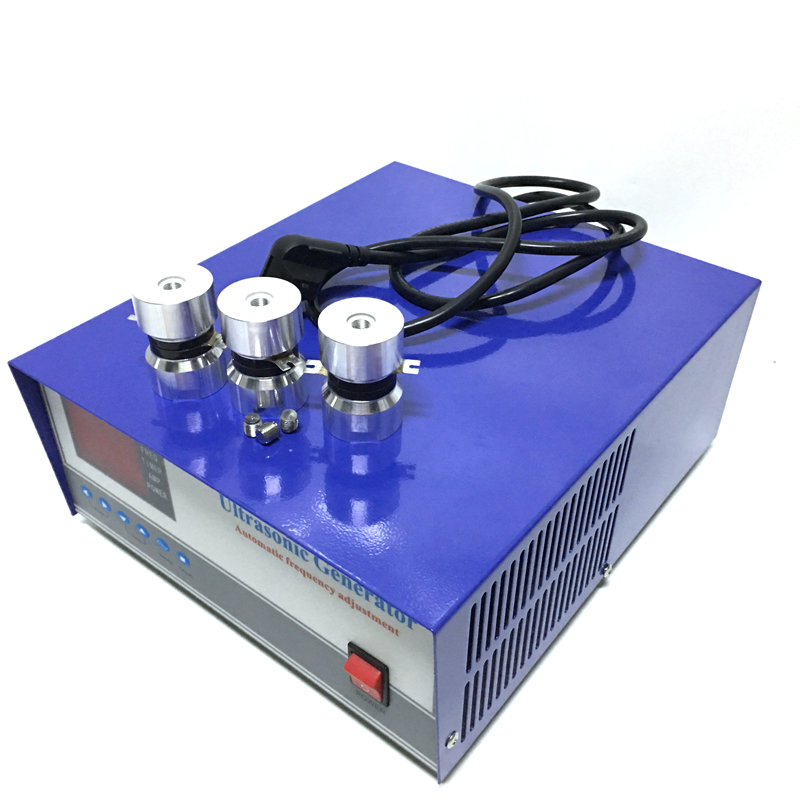

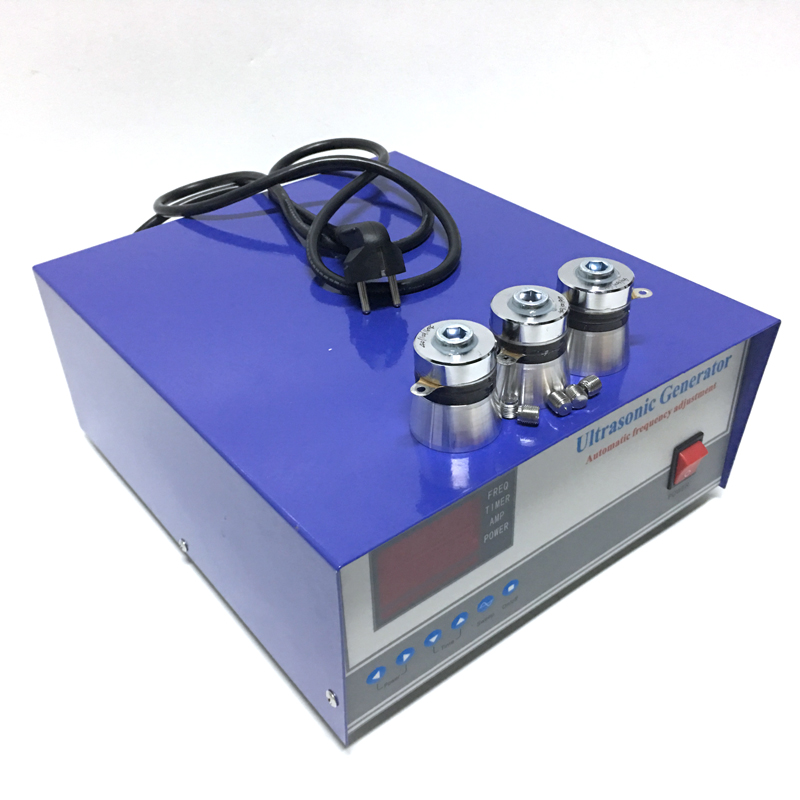

Ultrasonic generator	300W	AC220V   AC110V	50W*6pieces	Frequency adjustable from 20khz to 40khz   Auto Tracing or manual Adjusting Optional     Timer setting
	600W		50W*10pieces
	900W		50W*18pieces
	1000W		50W*20pieces
	1200W		50W*24pieces
	1500W		50W*30pieces
	1800W		50W*36pieces
	2000W		50W*40pieces
	2400W		50W*48pieces
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard.
