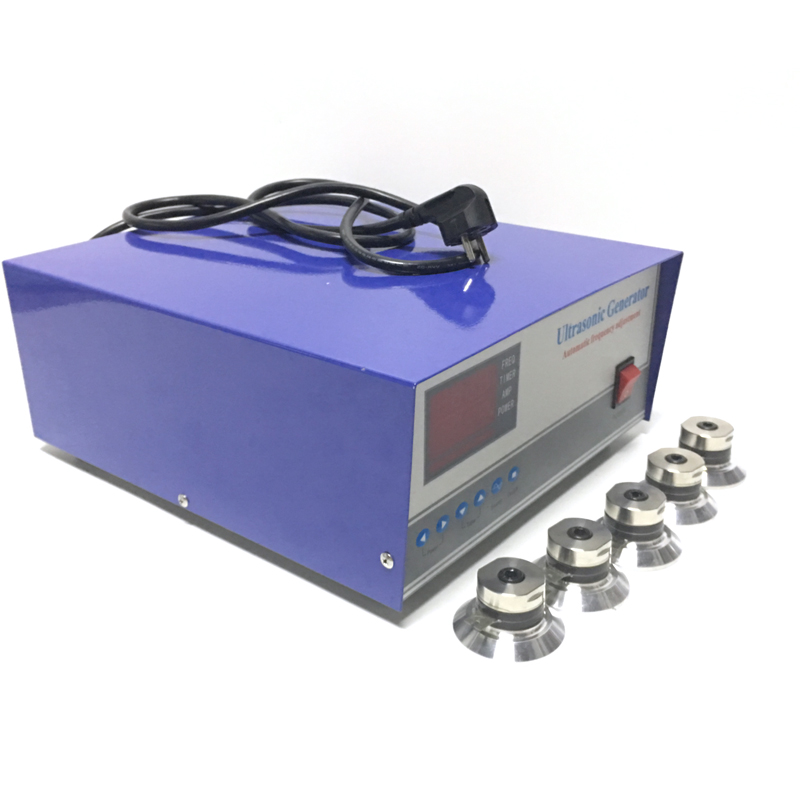

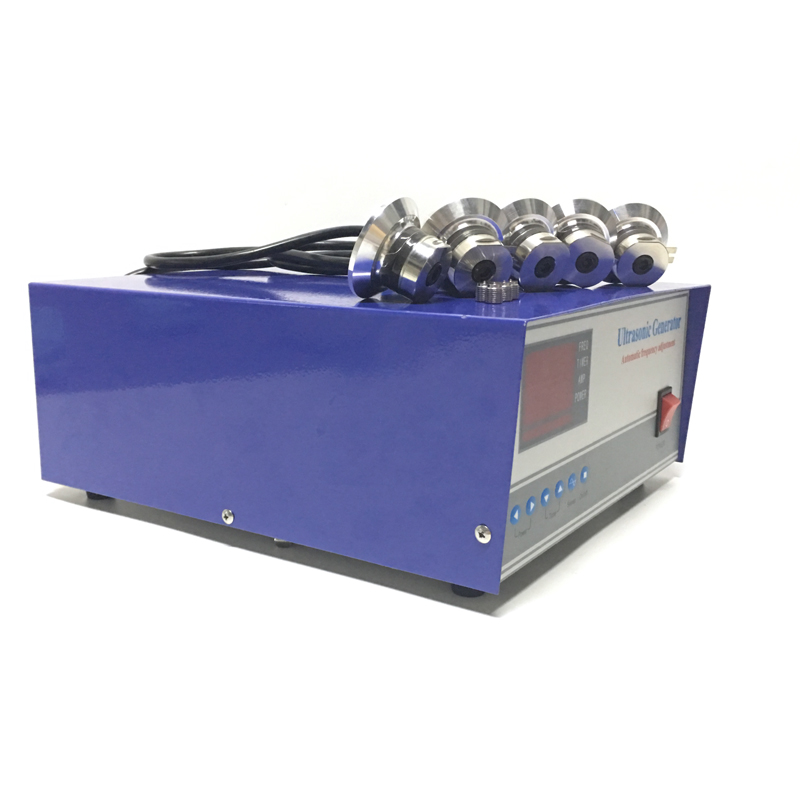

40khz multi-function digital industrial ultrasonic generator
Ultrasonic generator, ultrasonic power supply, ultrasonic cleaning machine accessories professional manufacturers; stepless frequency modulation ultrasonic power supply, the company's successful development of the latest ultrasonic control technology, after a year of research and development and experiment, in the relevant manufacturers related testing, to achieve very good results
1. The national exclusive R & D and production frequency stepless adjustable ultrasonic generator, 15 ~ 80kHz adjustable, precision to 0.1khz continuous frequency modulation function, make the output match better, in different working conditions can achieve the best resonance effect, higher work efficiency.
2. Automatic frequency tracking function, in working state, real-time implementation. Ensure that in the case of water temperature, the number of workpieces, cleaning agent changes, etc., when the frequency of the transducer changes, the generator can maintain automatic frequency tracking at any time, to achieve the best working condition of matching the frequency of the transducer.
3. The ultrasonic generator has the function of frequency sweep. In the cleaning process, the ultrasonic frequency moves back and forth in a reasonable range to drive the cleaning solution to form a fine reflux, so that the workpiece dirt can be quickly removed from the surface of the workpiece while being stripped by ultrasonic, and the cleaning efficiency is improved.
Item |
Power |
Input voltage |
Transducer suggested |
Remark: |
Ultrasonic generator |
300W |
AC220V
AC110V
|
50W*6pieces |
Frequency adjustable from 20khz to 40khz
Auto Tracing or manual Adjusting Optional
Timer setting |
|
600W |
50W*10pieces |
|
900W |
50W*18pieces |
|
1000W |
50W*20pieces |
|
1200W |
50W*24pieces |
|
1500W |
50W*30pieces |
|
1800W |
50W*36pieces |
|
2000W |
50W*40pieces |
|
2400W |
50W*48pieces |
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities
Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard. |
