The power supply of ultrasonic cleaning machine is also called ultrasonic power supply. Its function is to convert our commercial power (220 V or 380 V, 50 or 60 Hz) into high frequency AC signal matched with transducer. In fact, whether it is amplification circuit, or switching power supply circuit, in line adjustment, we must pay attention to its circuit form, so that it can really play a certain role. And its advantage is that it can ensure the effective configuration of the circuit, which can ensure the continuous adjustment of the working frequency.

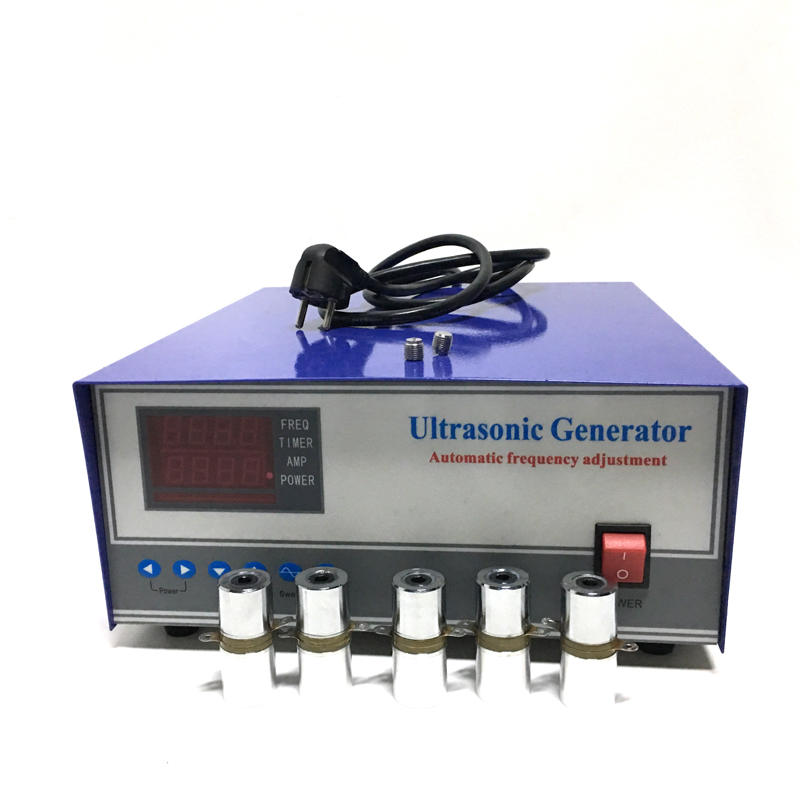

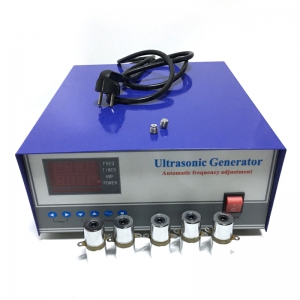

Ultrasonic power supply

In addition, for the use of ultrasonic cleaning machine, in the case of industrial application, whether it is the size of the frequency, or the level of capacitance, generally in the process of matching, we need to consider its use requirements, so as to better carry out the equipment matching Maintenance and maintenance, then naturally in the operation, you can ensure the selection of matching power supply and power cord.

From the amplification circuit form, we can use linear amplification circuit and switching power supply circuit, high-power ultrasonic power supply from the conversion efficiency, generally use the switching power supply circuit form. Linear power supply also has its unique application range, its advantage is that it can not strictly require circuit matching, allowing the working frequency to change continuously and rapidly. From the current situation of the ultrasonic industry, ultrasonic is mainly divided into self excitation and other excitation power supply; the use of ultrasonic power supply is mainly based on the size of the transducer power, frequency, capacitance to match. Low power can use self excitation type, high power is recommended to use other excitation type.

Item	Power	Input voltage	Transducer suggested	Remark:
Ultrasonic generator	300W	AC220V   AC110V	50W*6pieces	Frequency adjustable from 20khz to 40khz   Auto Tracing or manual Adjusting Optional     Timer setting
	600W		50W*10pieces
	900W		50W*18pieces
	1000W		50W*20pieces
	1200W		50W*24pieces
	1500W		50W*30pieces
	1800W		50W*36pieces
	2000W		50W*40pieces
	2400W		50W*48pieces
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard.
