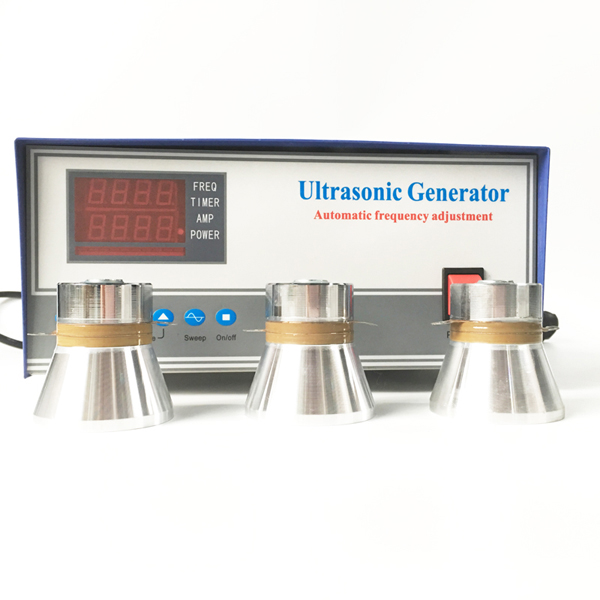

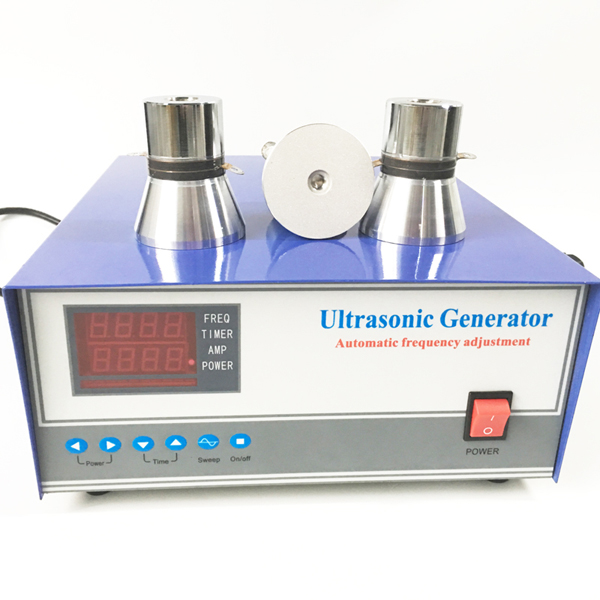

40khz ultrasonic transducer generator 2000W
The cleaning principle of the ultrasonic cleaning machine is that the high frequency oscillation signal emitted by the ultrasonic generator is converted into the high frequency mechanical oscillation by the transducer and transmitted to the medium-cleaning solvent. The ultrasonic wave radiates forward in the cleaning liquid densely, making the liquid flow and producing tens of thousands of tiny bubbles with a diameter of 50-500 microns. The tiny bubbles present in the liquid vibrate under the action of the sound field. These bubbles form and grow in the negative pressure region of ultrasonic longitudinal propagation, and in the positive pressure region, when the sound pressure reaches a certain value, the bubbles rapidly increase and then suddenly close. When the bubble closes, it produces a shock wave, which destroys the insoluble dirt and disperses them in the cleaning solution. When the group particles are coated by oil and adhere to the surface of the cleaning parts, the oil is emulsified, and the solid particles are separated from it, so as to achieve the purpose of cleaning parts. In this process known as cavitation, bubble closure can create several hundred degrees of high temperature and an instantaneous high pressure of more than 1,000 atmospheric pressures, continuously producing instantaneous high pressure like a series of small "explosions" that constantly impact the surface of the object, causing the surface of the object and the dirt in the crack to peel off rapidly, thus achieving the object. The purpose of surface cleaning and purification.
UCE's R&D and production of ultrasonic transducers and ultrasonic generators, based on the persistence of customer satisfaction, has stood out after a rigorous test and become the most well-known professional ultrasonic manufacturers in China.
The company covers an area of more than 2000 square meters, the main products are small ultrasonic cleaning machine, single-slot/multi-slot ultrasonic cleaning machine, semi-automatic/full-automatic ultrasonic cleaning machine, ultrasonic dishwasher, optical lens cleaning machine, hydrocarbon cleaning machine, small ultrasonic welding machine, standard ultrasonic welding machine, high-power ultrasonic cleaning machine. Welding machines, ultrasonic transducers, ultrasonic generators and other non-standard equipment. Advanced international technology and imported components make the "Stewart" brand ultrasonic equipment, the market share has increased steadily over the years.
Widely used in hardware, plastics, electronics, electrical appliances, electroplating, jewelry, watch straps, glass lenses, optical lenses, automobiles, aircraft, solar wafers, semiconductor silicon wafers, pharmaceuticals, chemical fibers, new materials and household industries, well received by users. Our aim is to constantly innovate and pursue the perfect quality.
|
Type
|
Power（W）
|
Frequency (KHz)
|
Transducer numbers
|
Size
|
|
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
|
|
UCE-NT300
|
300W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
3-6
|
300x360x150
|
|
UCE-NT600
|
600W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
6-12
|
300x360x150
|
|
UCE-NT900
|
900W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
9-18
|
300x360x150
|
|
UCE-NT1000
|
1000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
10-20
|
300x360x150
|
|
UCE-NT1200
|
1200W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
12-24
|
300x360x150
|
|
UCE-NT1500
|
1500W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
15-30
|
300x360x150
|
|
UCE-NT1800
|
1800W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
18-36
|
300x360x150
|
|
UCE-NT2000
|
2000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
20-40
|
300x360x150
|
|
UCE-NT2400
|
2400W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
24-48
|
300x360x150
|
|
UCE-NT3000
|
3000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
50-60
|
300x360x150
|
|
High Frequency
|
300W-1200W
|
65-80khz
|
|
High Frequency
|
300W-1200W
|
120-135khz
|
