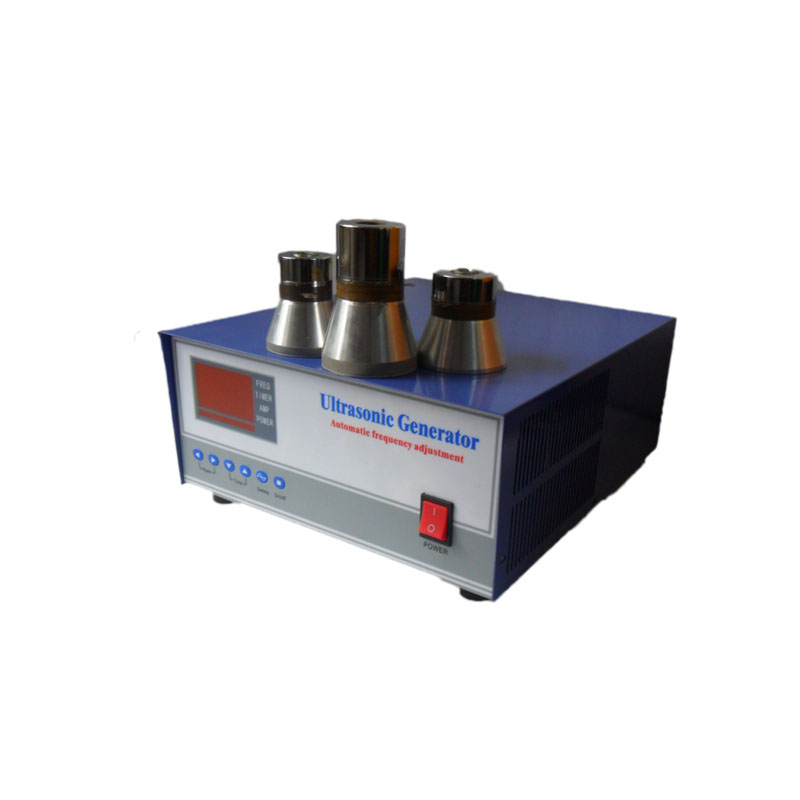

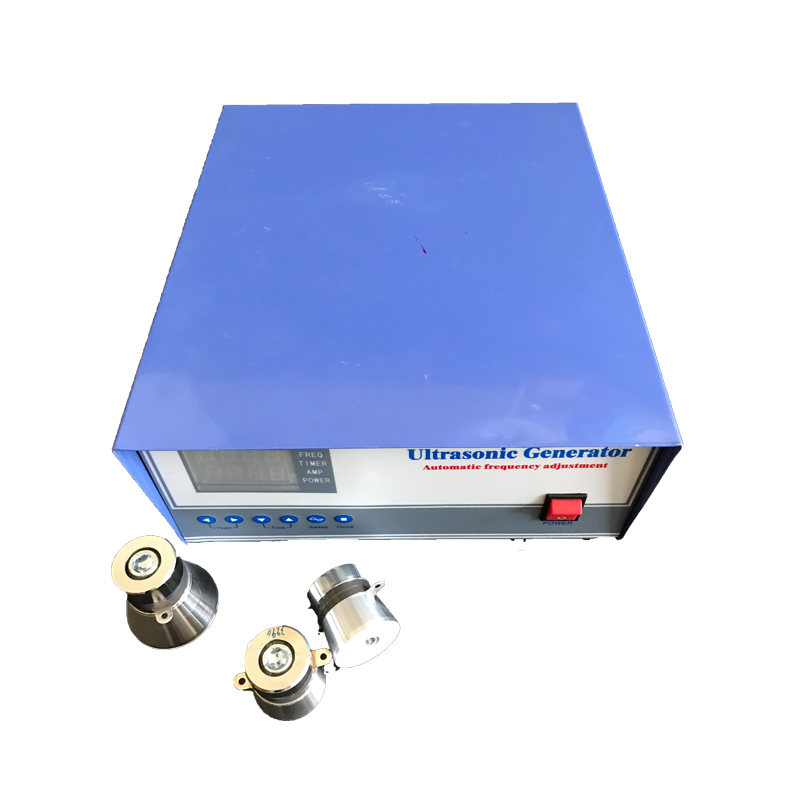

Automatic Frequency Control Ultrasonic Generator
Environment temperature: 0-40C°
Relative humidity: 40%--90%
Working frequency: 28KHz(40KHz,80 KHz,135KHz, etc)5%
Time control: 0-59 minutes 59 seconds
Range of power control: 0-100% digital control and adjustment of 16 grades
Internal over temperature protection: 65 C°
Outer size: L x W x H = 160 x 300 x 360
Ultrasonic generator and PCB ultrasonic generator. The automatic tracking of operating frequency can optimize output matching, strengthen power and raise efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time wash off the dirty uncovered by ultrasonic wave from the surface of working pieces and thus reach faster and thorough cleaning effect and raise the efficiency of ultrasonic cleaning.

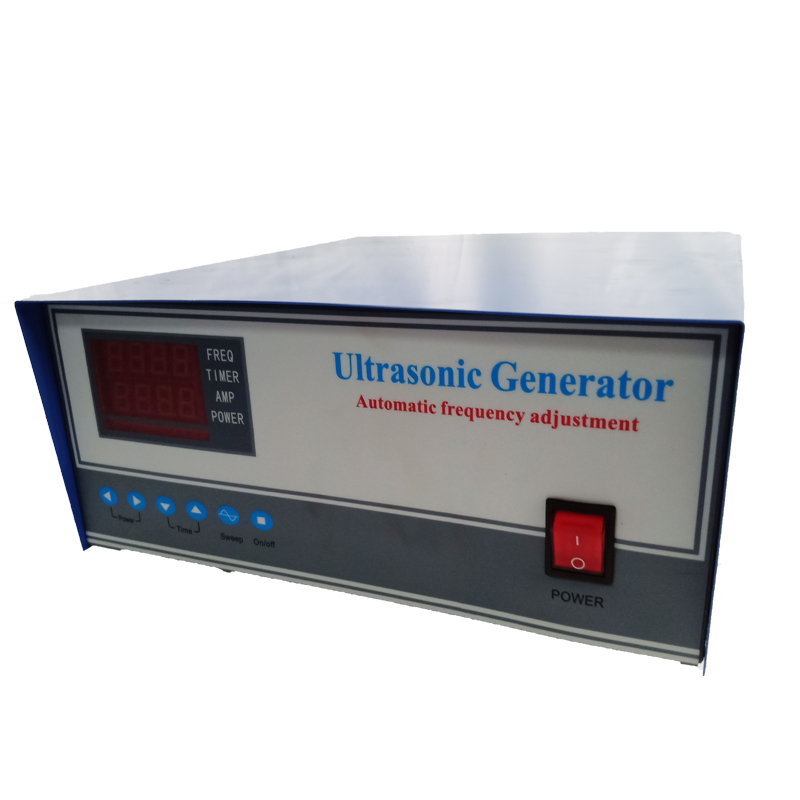

Display window: for displaying fixed time, power, working state and faults.
Switch for frequency sweep: selecting normal or frequency-sweeping working state.
On/Off: controlling operation and pause of working state.
Adding fixed time: set value of working time.
Reducing fixed time: set value of working time.
Raising power: raising output power.
Reducing power: reducing output power.
