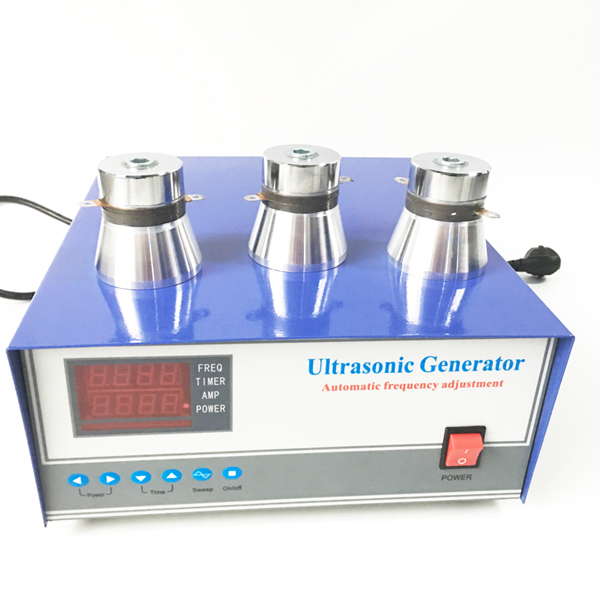

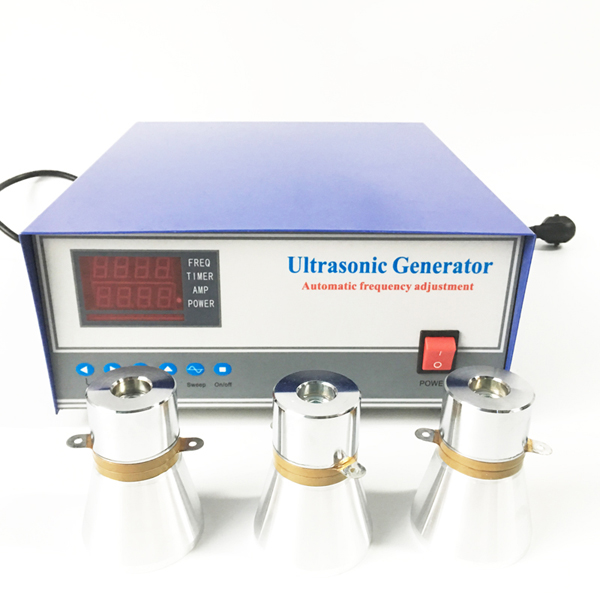

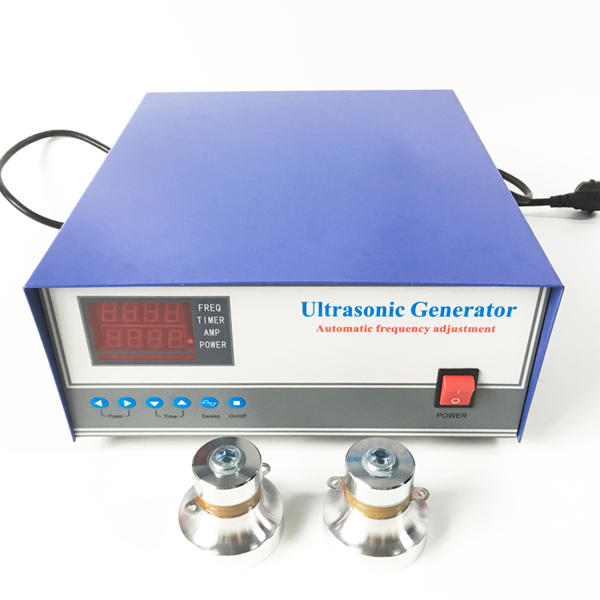

Degas ultrasonic generator for cleaning tank 2000W

Degas ultrasonic generator for cleaning tank 2000W,Degas ultrasonic generator for cleaning tank 2000W,Degas ultrasonic generator for cleaning tank 2000W,Degas ultrasonic generator for cleaning tank 2000W

Item ID #

Ask a Question FAQ & Help Payment Methods Shipping Estimator Email To Us Print This Page

Description

Degas ultrasonic generator for cleaning tank 2000W

The ultrasonic generator is a kind of equipment for electric conversion high frequency alternating current transducer to drive the corresponding transducer work, high power ultrasonic system is an important part, which can also be called the electronic box, ultrasonic power supply, ultrasonic controller. Although the ultrasonic generator can also be called ultrasonic power supply, but in fact, the ultrasonic generator is only part of the ultrasonic drive power supply. The ultrasonic power supply according to incentive mode can be divided into self-excited and excitation, and the ultrasonic generator is that it refers to excitation type ultrasonic power, due to its excited oscillation circuit at the output power of a self-excited 10% higher, so most of the current ultrasonic generator was used as the driving power.

The input of the ultrasonic generator is a fixed frequency signal, the waveform of the signal is uncertain, sine and pulse, but the frequency is fixed to the frequency of the transducer, generally 20, 25, 28, 33, 40, 60KHz and so on. Through the internal conversion of ultrasonic generator, its output is power signal, frequency tracking signal and so on.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-NT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
UCE-NT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
UCE-NT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
UCE-NT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
UCE-NT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
UCE-NT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
UCE-NT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
UCE-NT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
UCE-NT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
UCE-NT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
