Immersible ultrasonic generator for cleaning tank 1000W

Immersible ultrasonic generator for cleaning tank,Immersible ultrasonic generator for cleaning tank,Immersible ultrasonic generator for cleaning tank,Immersible ultrasonic generator for cleaning tank

Item ID #

Ask a Question FAQ & Help Payment Methods Shipping Estimator Email To Us Print This Page

Description

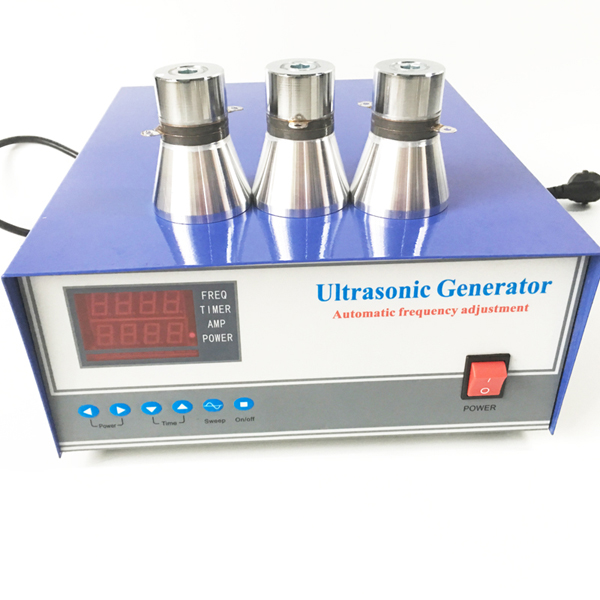

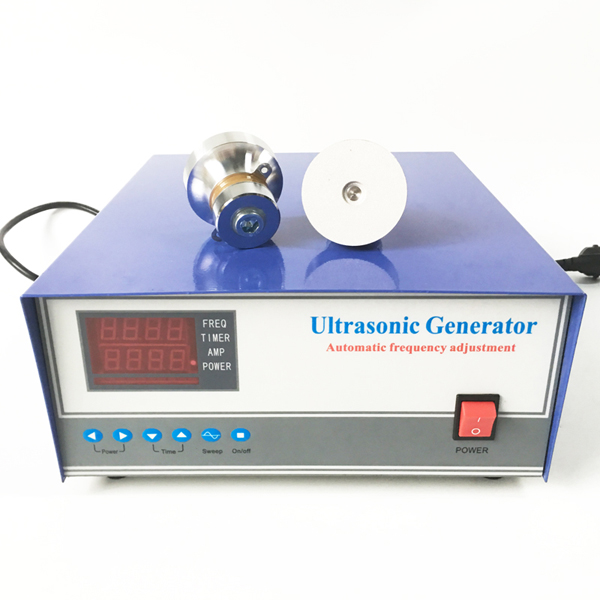

Immersible ultrasonic generator for cleaning tank 1000W

Stepless frequency modulation ultrasonic generator, 20KHZ ~ 45KHZ continuous adjustable, precision to 0.1KHZ adjustable; simple and flexible settings, so that the output matching better, higher efficiency.

High end Intelligence: mainly adopts digital modularization technology, which can meet the requirements of any precision cleaning.

The output current is pure sine wave, which can extend the life of the oscillator and the signal generator itself.

The frequency sweep function can be set freely: the frequency sweep frequency is adjustable, so that the cleaning effect is better. (multiple harmonic waves can be generated)

Frequency automatic tracking function: automatic tracking output inductance and resonant frequency of the head, cleaning effect will not change with temperature, humidity, water depth, oscillator aging and use time and other conditions, so that the cleaning effect has been maintained at the highest level.

Protection function: Over-power protection, over-current protection, over-voltage protection, under-voltage protection, frequency tracking failure protection, over-temperature protection, output short-circuit protection, under different conditions can protect the signal generator and oscillator, prolong the working life of the whole machine.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-NT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
UCE-NT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
UCE-NT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
UCE-NT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
UCE-NT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
UCE-NT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
UCE-NT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
UCE-NT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
UCE-NT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
UCE-NT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
