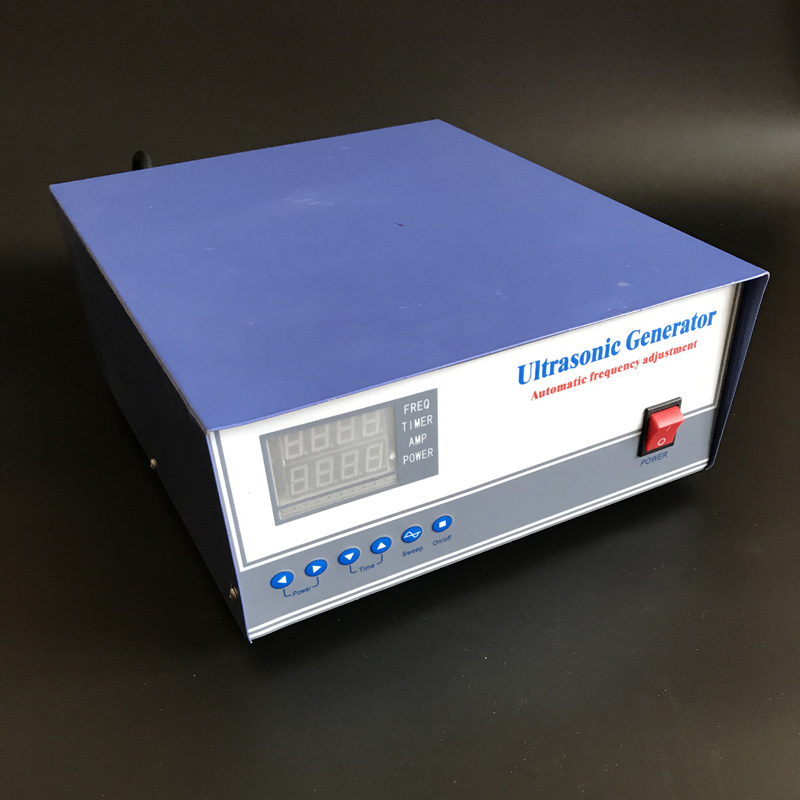

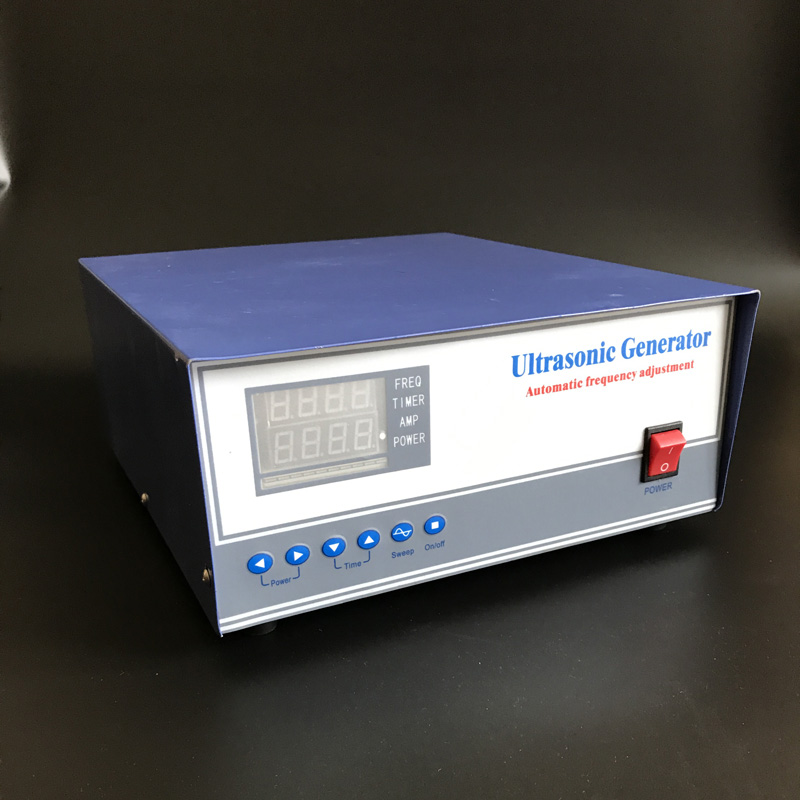

ultrasonic cleaner power supply 1000W28khz/40khz

ultrasonic cleaner power supply 1000W28khz/40khz,ultrasonic cleaner power supply 1000W28khz/40khz,ultrasonic cleaner power supply 1000W28khz/40khz,ultrasonic cleaner power supply 1000W28khz/40khz

Item ID #

Ask a Question FAQ & Help Payment Methods Shipping Estimator Email To Us Print This Page

Description

ultrasonic cleaner power supply 1000W28khz/40khz

Input voltage: 180-265V AC

2. Conversion efficiency: 93% (min).

3. Working temperature: - 20 degrees Celsius - 65 degrees Celsius.

4. Average trouble-free time: 50000 hours. (100000 hours optional)

5. Soft start circuit, power continuously adjustable.

5. Maximum current envelope VALLEY-PEAK ratio (unilateral): 66%. (Other models on the market are up to 5%. Because this ratio is relatively large, it does not damage the transducer and does not burn the cylinder.)

6. Triangular wave energy transfer circuit solves the problem of explosive machine and cylinder burner perfectly. The power is very stable regardless of temperature, water level, load change.

7. Digital display output power.

8. Perfect protection circuit, over-temperature, over-voltage, low voltage, over-current and short-circuit protection can monitor the possible problems of generator in real time.

9. The power is continuously adjustable.

10. The unique bootstrap anti-Miller effect circuit can make the generator work more stable at high frequencies and lower the temperature of power transistors. The unique dither technology at high frequencies can make its performance perfect at high frequencies.

11. Peripheral remote control, can use PLC or related devices to achieve remote switch control of the generator.

12. The peripheral synchronization terminal can make several generators work synchronously, which further reduces the working noise of high-power machines and improves the stability.

13. Frequency auto-tracking circuit: breakpoint harmonic auto-tracking circuit to ensure that the machine works at the best frequency point at any time. Better protection for transducers.

14. Full-bridge circuit design, more stable performance.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-NT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
UCE-NT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
UCE-NT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
UCE-NT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
UCE-NT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
UCE-NT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
UCE-NT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
UCE-NT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
UCE-NT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
UCE-NT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
