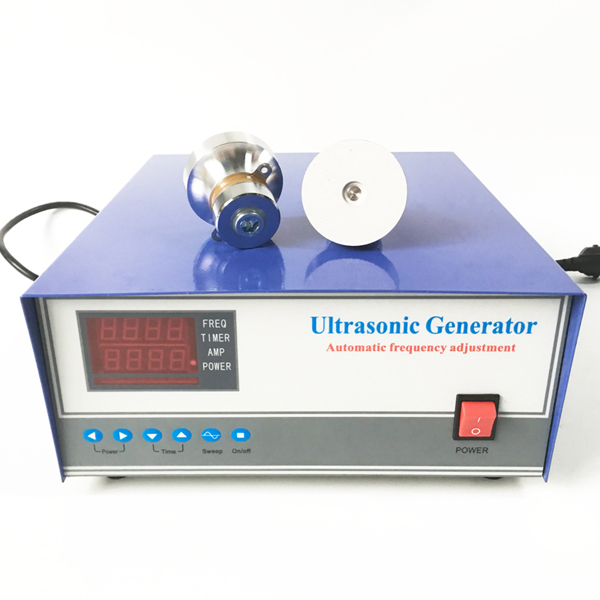

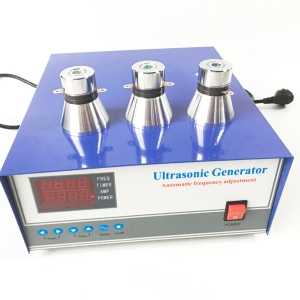

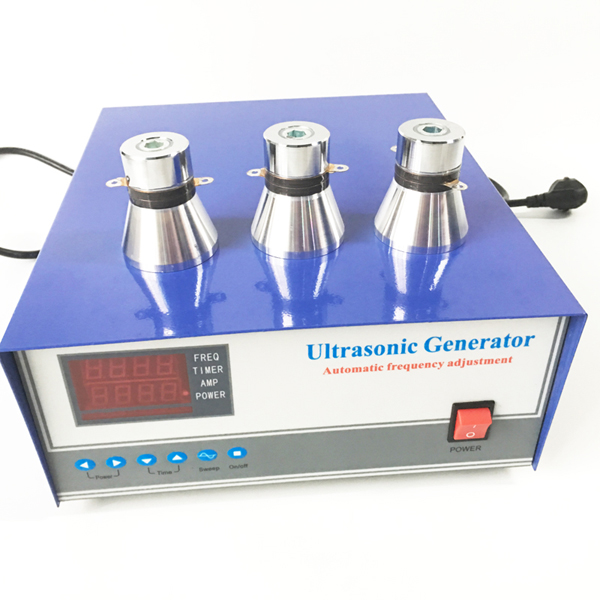

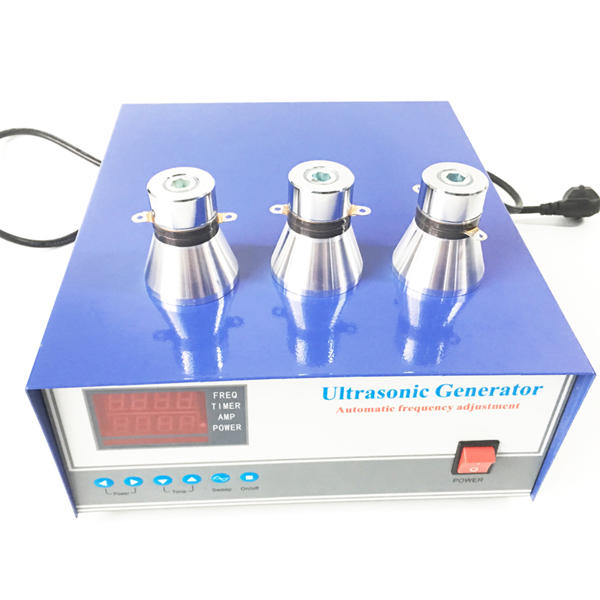

ultrasonic generator variable frequency 28khz/40khz

ultrasonic generator variable frequency 28khz/40khz,ultrasonic generator variable frequency 28khz/40khz,ultrasonic generator variable frequency 28khz/40khz

Item ID #

Ask a Question FAQ & Help Payment Methods Shipping Estimator Email To Us Print This Page

Description

ultrasonic generator variable frequency 28khz/40khz
Piezoelectric transducer is a kind of transducer of acoustic energy and electrical energy. Its working efficiency directly affects the performance of the whole ultrasonic measurement system. The design of driving circuit of piezoelectric transducer involves impedance matching and pulse transformer design, which needs not only a certain theoretical basis, but also a technology of practical experience. It brings certain difficulties to the design of researchers and researchers. At present, the driving circuit of piezoelectric transducer in China is mainly designed by two methods: One is direct drive: using a fixed frequency, high-power semiconductor switching devices, such as field effect transistors, controllable direct drive piezoelectric transducer work, the transducer is directly powered by the power supply voltage.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-NT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
UCE-NT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
UCE-NT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
UCE-NT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
UCE-NT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
UCE-NT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
UCE-NT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
UCE-NT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
UCE-NT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
UCE-NT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
