ultrasonic high power pulse generator 1000W20KHZ

ultrasonic high power pulse generator 1000W20KHZ,ultrasonic high power pulse generator 1000W20KHZ,ultrasonic high power pulse generator 1000W20KHZ,ultrasonic high power pulse generator 1000W20KHZ

Item ID #

Ask a Question FAQ & Help Payment Methods Shipping Estimator Email To Us Print This Page

Description

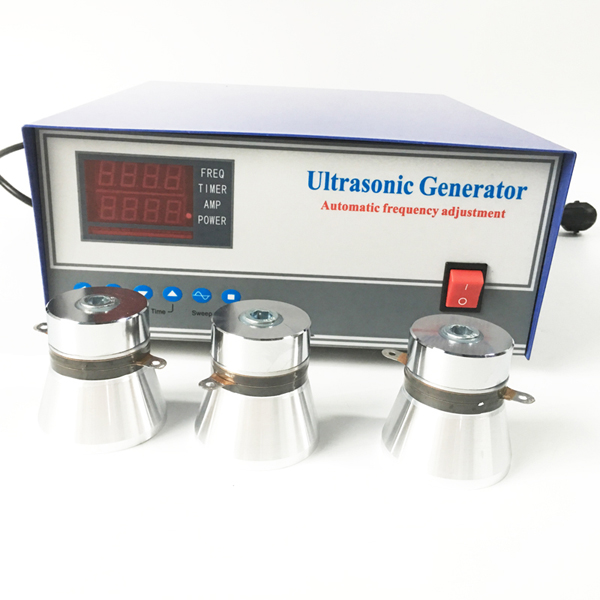

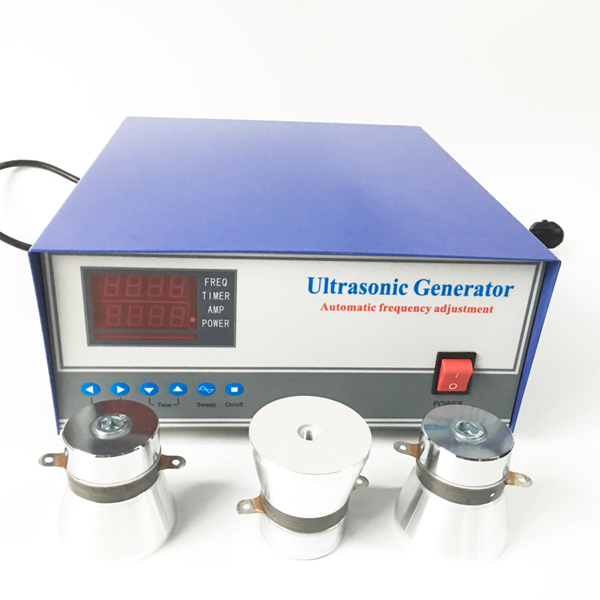

ultrasonic high power pulse generator 1000W20KHZ

The 1. generator is controlled by Atmel high stability single chip microcomputer.

2. Frequency power digital adjustable, LCD display, frequency adjustable range is 18-45KHz, power adjustable range is 40-100%;

3. original imported MITSUBISHI IGBT high power tube to ensure the cleaning machine works stably.

4. with external PLC control interface, external PLC can be used to control the start and stop of ultrasonic generator.

5. With an output interface of OMRON, it can output alarm signal for external system or other output.

6. ultrasonic generator program can be modified according to customer requirements.

IGBT module ultrasonic generator / power supply

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-NT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
UCE-NT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
UCE-NT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
UCE-NT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
UCE-NT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
UCE-NT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
UCE-NT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
UCE-NT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
UCE-NT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
UCE-NT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
