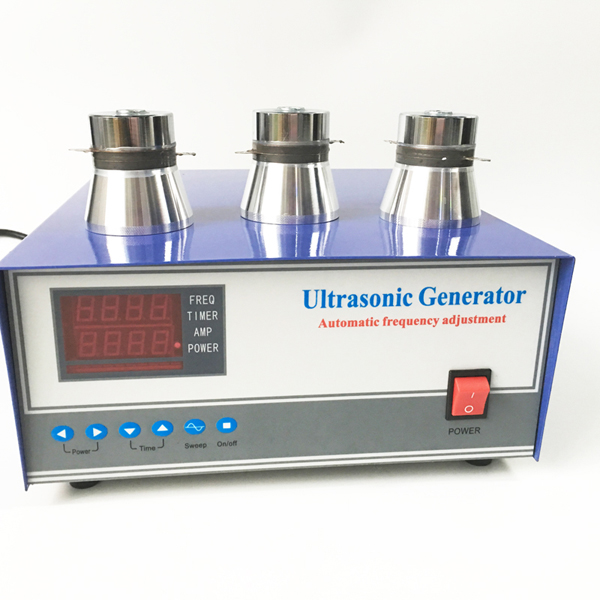

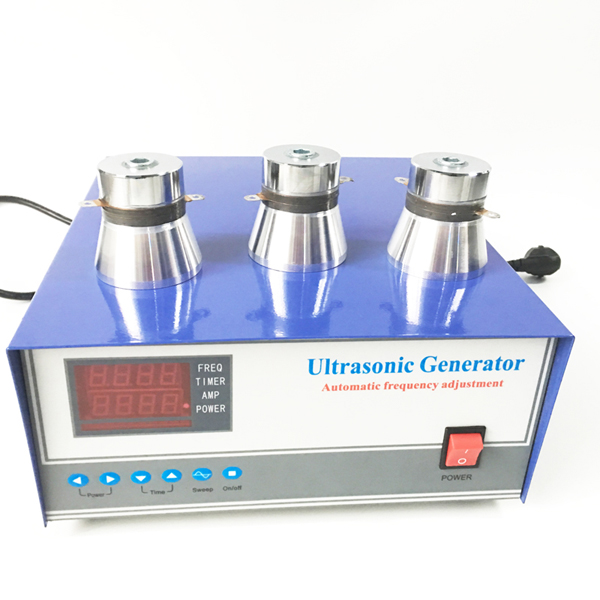

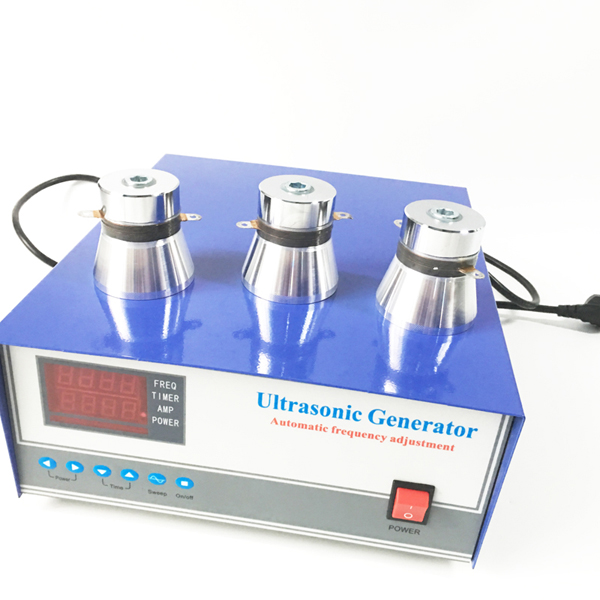

ultrasonic piezoelectric power generator 1000W 28khz

ultrasonic piezoelectric power generator 1000W 28khz,ultrasonic piezoelectric power generator 1000W 28khz,ultrasonic piezoelectric power generator 1000W 28khz,ultrasonic piezoelectric power generator 1000W 28khz

Item ID #

Ask a Question FAQ & Help Payment Methods Shipping Estimator Email To Us Print This Page

Description

ultrasonic piezoelectric power generator 1000W 28khz

Ultrasonic generator, also known as ultrasonic drive power, electronic box, ultrasonic controller, is an important part of high-power ultrasonic system. The function of ultrasonic generator is to convert the market electricity into high frequency alternating current signal matching with ultrasonic transducer and drive ultrasonic transducer to work. Generally speaking, switching power supply is widely used in high power ultrasonic power supply. Ultrasound power supply is divided into self-excited power supply and its excitation power supply, self-excited power supply is called ultrasonic analog power supply, its excitation power is called ultrasonic generator.

PSB (5)

Machine features:

1. Frequency fine-tuning: adjust the frequency so that the ultrasonic transducer always works in the best state, the efficiency reaches the maximum;

2. Automatic frequency following: once the equipment has completed its initial settings, it can work continuously without adjusting the generator;

3. Amplitude control: when the load changes during the transducer operation, it can automatically adjust the driving characteristics to ensure that the vibration head gets a stable amplitude.

4. System protection: When the system works under unsuitable operating environment, the generator will stop working and alarm display to protect the equipment from damage.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-NT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
UCE-NT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
UCE-NT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
UCE-NT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
UCE-NT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
UCE-NT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
UCE-NT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
UCE-NT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
UCE-NT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
UCE-NT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
