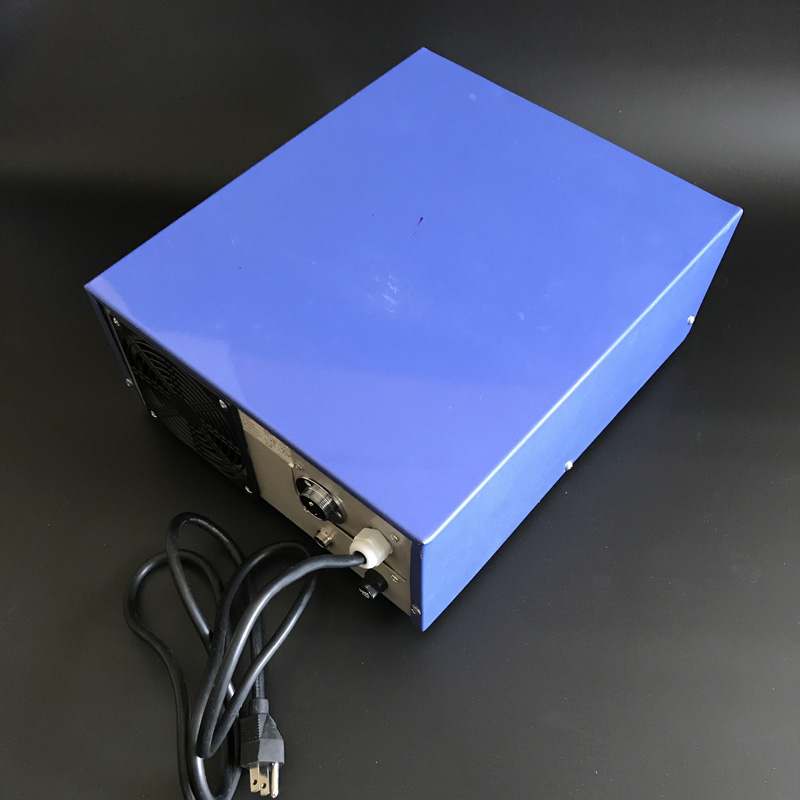

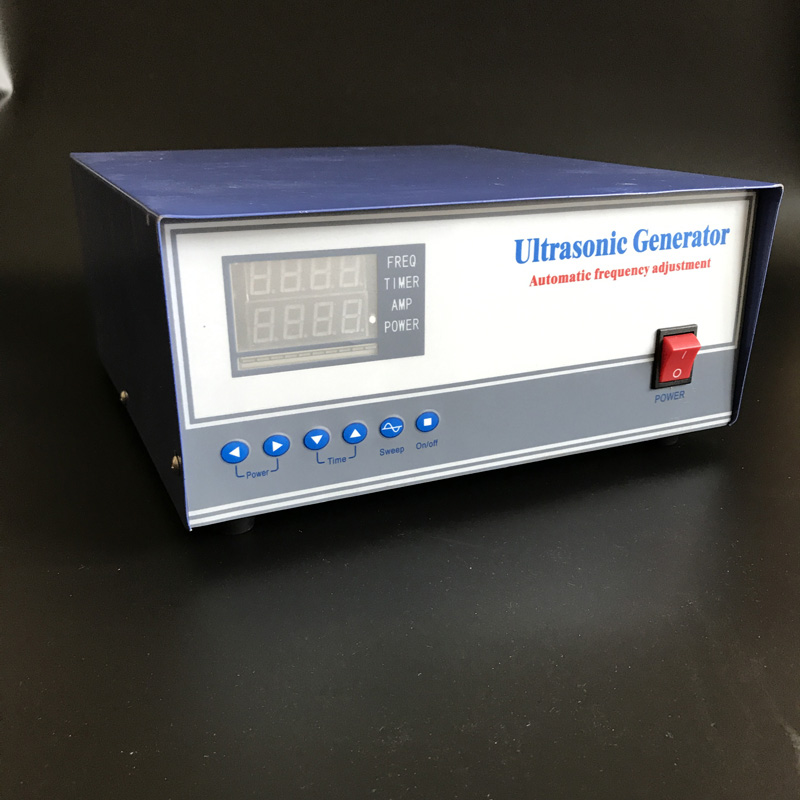

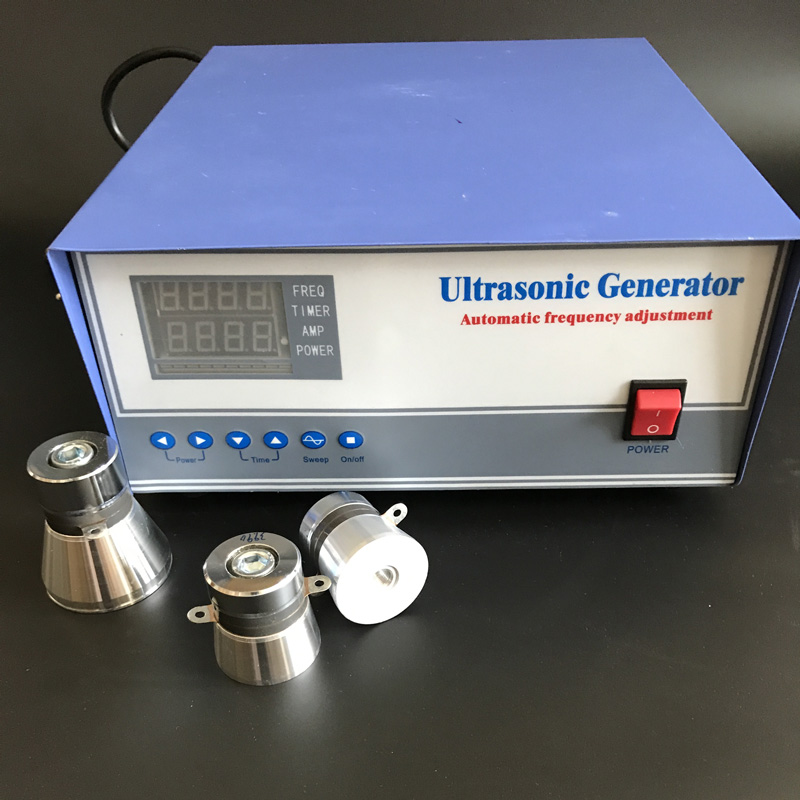

ultrasonic transducer power supply 1000W 40khz
Ultrasound generator, commonly known as ultrasonic electric box, ultrasonic source, ultrasonic power supply. Its function is to convert our municipal electricity (220V or 380V, 50 or 60Hz) into high frequency AC signals matching the ultrasonic transducer. From the form of amplifier circuit, linear amplifier circuit and switching power supply circuit can be used, and high-power ultrasonic power supply generally adopts switching power supply circuit form in terms of conversion efficiency. Linear power supply also has its unique application scope. Its advantage is that it can not strictly require circuit matching and allow continuous and rapid changes in operating frequency. From the current situation of the ultrasonic industry, the principle of the ultrasonic generator is to produce a specific frequency signal by the signal generator, which can be sinusoidal signal or pulse signal. This specific frequency is the frequency of the transducer. Ultrasound frequency used in the ultrasonic equipment is 20KHz, 25KHz, 28KHz, 33KHz, 40KHz, 60KHz or 100KHz. Up to now, it has not been widely used. But with the development of precision cleaning in the future. It is believed that the use will be gradually expanded.

Item	Power	Input voltage	Transducer suggested	Remark:
Ultrasonic generator	300W	AC220V   AC110V	50W*6pieces	Frequency adjustable from 20khz to 40khz   Auto Tracing or manual Adjusting Optional     Timer setting
	600W		50W*10pieces
	900W		50W*18pieces
	1000W		50W*20pieces
	1200W		50W*24pieces
	1500W		50W*30pieces
	1800W		50W*36pieces
	2000W		50W*40pieces
	2400W		50W*48pieces
Ultrasonic Transducer needs calculated = Total ultrasonic power/ each transducer power=quantities Upon you place order,please left message the input voltage needs,if not,we will deliver as per each country standard.
