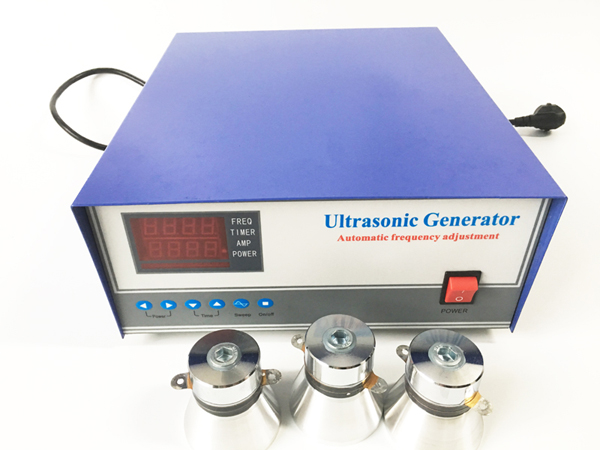

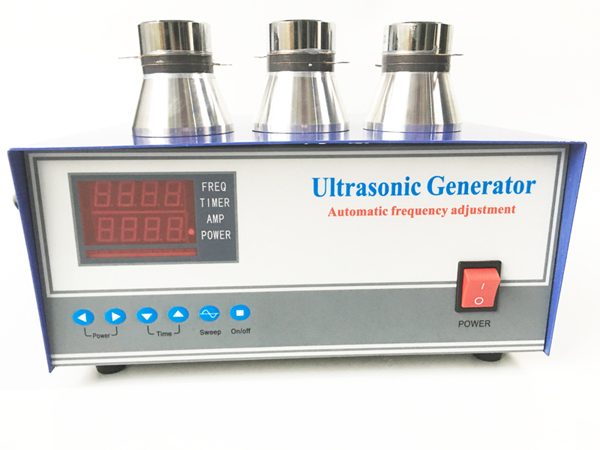

ultrasonic transducer signal generator for ultrasonic cleaner

ultrasonic transducer signal generator for ultrasonic cleaner,ultrasonic transducer signal generator for ultrasonic cleaner,ultrasonic transducer signal generator for ultrasonic cleaner,ultrasonic transducer signal generator for ultrasonic cleaner

Item ID #

Ask a Question FAQ & Help Payment Methods Shipping Estimator Email To Us Print This Page

Description

ultrasonic transducer signal generator for ultrasonic cleaner

In the ultrasonic market, it has a mature ultrasonic circuit model, after more than 20 years of testing, mature technology, stable quality, simple debugging, the appearance of a classic model, years of characteristics of ultrasonic cleaning is powerful.

The ultrasonic generator has the following characteristics:

(1) Ultrasonic cleaning is powerful, suitable for cleaning all kinds of stubborn stains, ultrasonic single-point effective power industry 1 high, penetrating force is very strong;

2. With overvoltage, overcurrent and overheating protection function, the generator is burned out for many years.

The ammeter shows that it is intuitive, easy to understand and easy to operate.

(4) Frequency adjustable function: a generator can adjust the use of multiple frequency bands, but the company's engineers professional statement: each frequency band chip program is different, inductance coil ratio is different, transformer wire diameter is different, need to be under the guidance of the manufacturer to debug and use, a wide range of frequency changes, will damage the machine.

_, power adjustable function, the generator adopts a safe voltage regulation mode, the output power of the ultrasonic generator is pole-less regulation.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-NT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
UCE-NT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
UCE-NT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
UCE-NT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
UCE-NT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
UCE-NT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
UCE-NT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
UCE-NT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
UCE-NT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
UCE-NT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
