Ultrasound Power Supply Electronic Box 1000W 28khz

Ultrasound Power Supply Electronic Box 1000W 28khz,Ultrasound Power Supply Electronic Box 1000W 28khz,Ultrasound Power Supply Electronic Box 1000W 28khz,Ultrasound Power Supply Electronic Box 1000W 28khz

Item ID #

Ask a Question FAQ & Help Payment Methods Shipping Estimator Email To Us Print This Page

Description

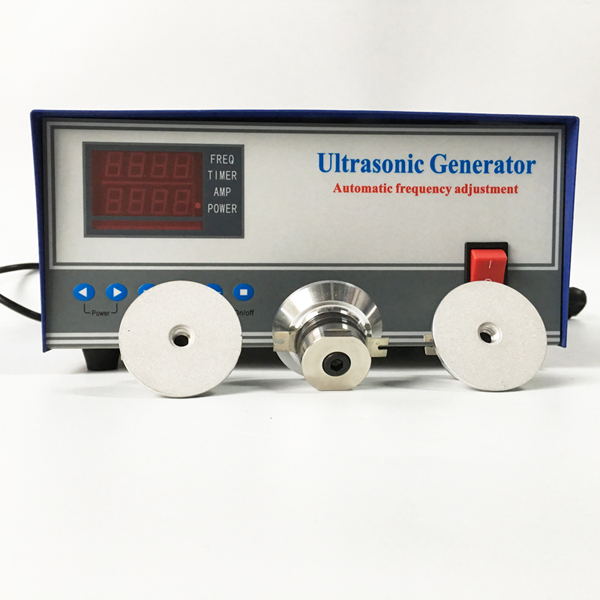

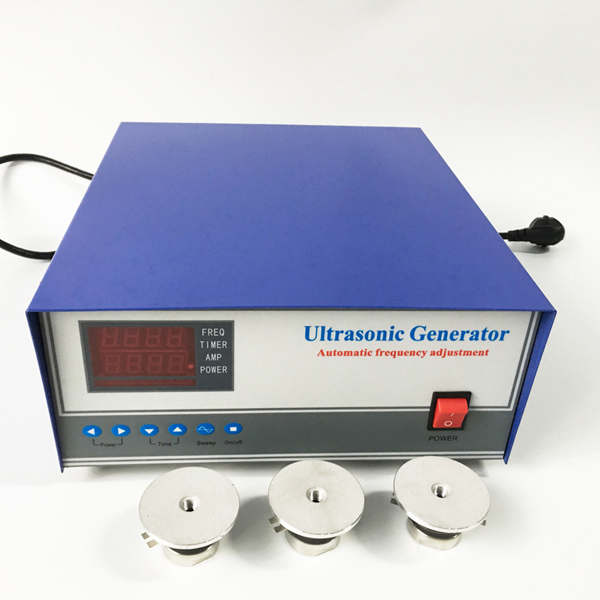

Ultrasound Power Supply Electronic Box 1000W 28khz

The panel button is concise and clear, and does not need complicated process.

Automatic frequency control

Once the generator has completed its initial setup, it can work continuously without having to adjust again. Frequency modulation and frequency automatic compensation bandwidth is larger than the same type of products, user-friendly mold matching, to avoid temperature rise resulting in reduced stability.

Dual system protection circuit

Ensure the reliability of the system under proper operating conditions. When the system operates under unsuitable operating conditions (e.g. improper tuning, generator overload, mismatched welding head or amplitude modulator, improper connection or damage), the protection circuit will stop the generator to protect the generator and other system components from damage. (optional external alarm activation device, activate external alarm, report defective goods or close system).

Modularization of components

The components can be installed and disassembled quickly, which is convenient for replacement and maintenance, and ensures continuity of production.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-NT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
UCE-NT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
UCE-NT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
UCE-NT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
UCE-NT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
UCE-NT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
UCE-NT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
UCE-NT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
UCE-NT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
UCE-NT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
