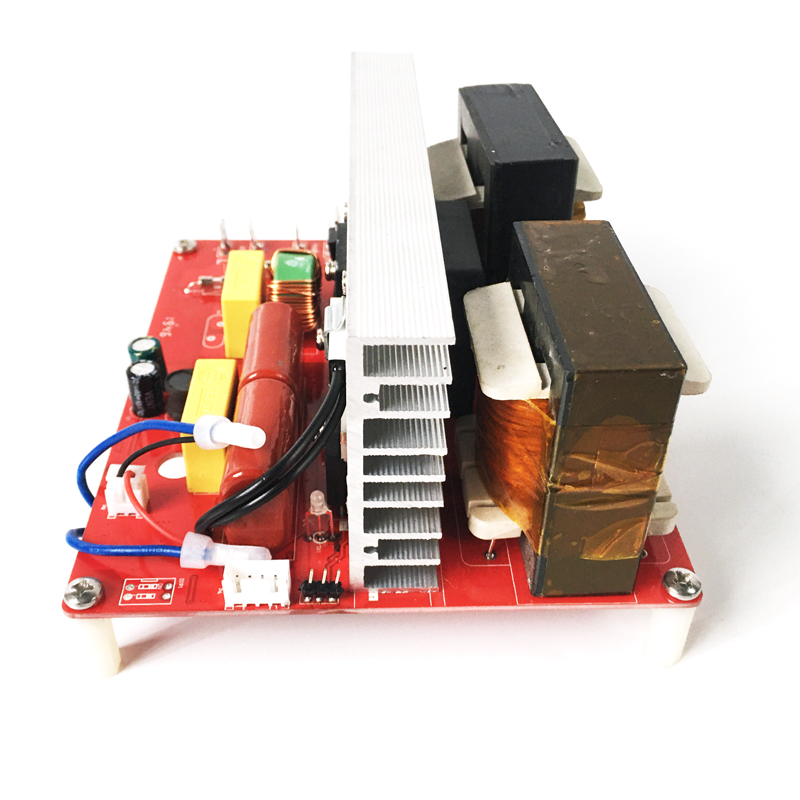

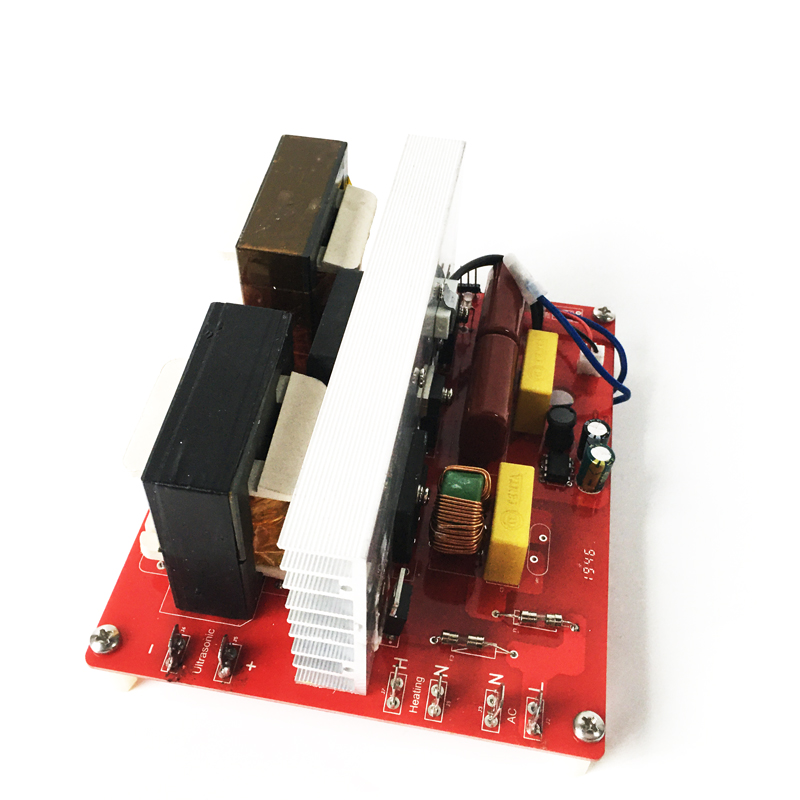

100khz Ultrasonic Generator PCB Circuit Board
1. Frequency sweep function: the advanced sweep frequency circuit in the international market can effectively protect the shock plate;
2. IGBT has the advantages of fast output, small volume and so on;
3. Power tube: the imported 50A / 1200V inlet pipe is adopted to eliminate the possibility of burning pipe;
4. Unique sealing and anti-corrosion technology ensures long-term stable and reliable operation of internal circuit board;
5. The output power of the new control circuit is as high as 98%, which greatly improves the ultrasonic cavitation density;
6. The output current of the generator and the transducer can prolong the service life;
7. Wide range sweep frequency: 80khz-100khz adjustable, suitable for all kinds of transducers;
8. Constant output design, the output current ripple is small, the output is more stable, protect the transducer from damage;
9. Output over-current, short-circuit protection, can protect the generator power tube.
Type |
Power(W) |
Frequency (KHz) |
UCE-220V-PCB200W |
200 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz,165khz,200khz |
UCE-220V-PCB300W |
300 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz |
UCE-220V-PCB400W |
400 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB500W |
500 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB600W |
600 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
