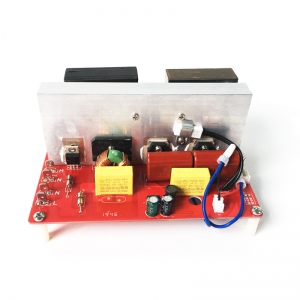

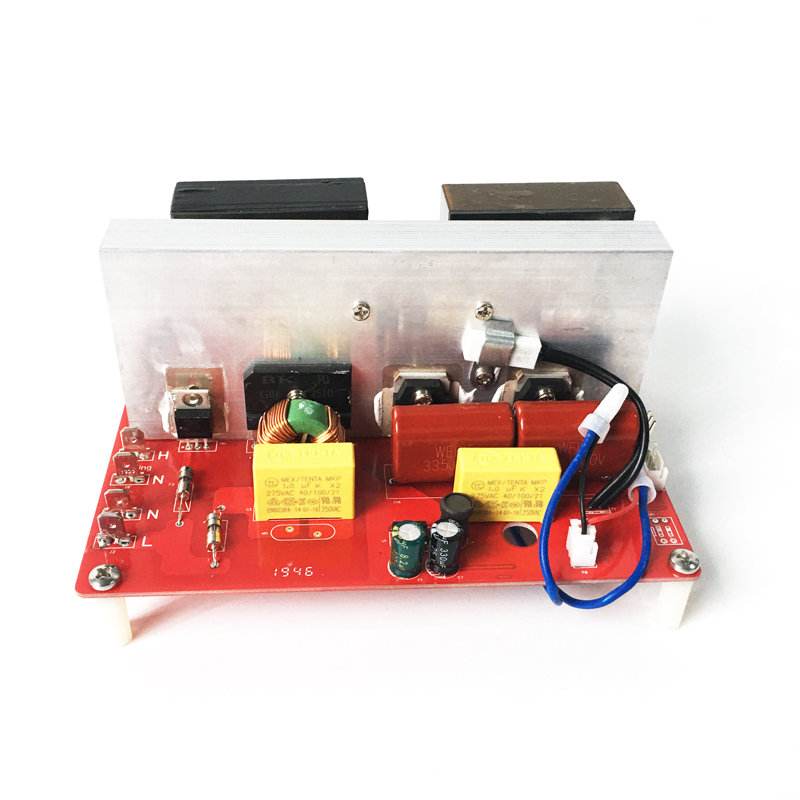

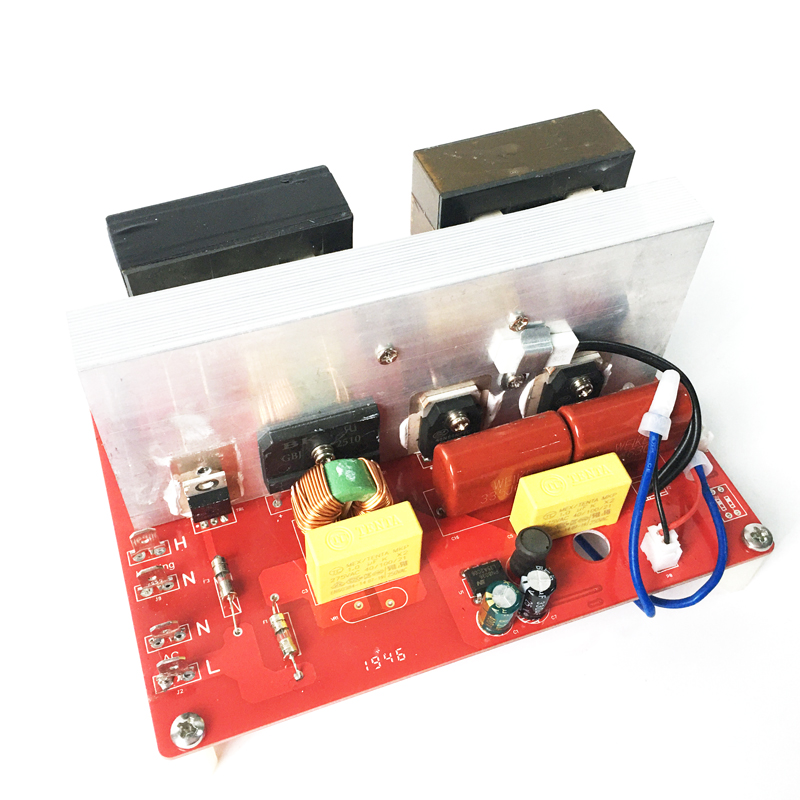

110V Ultrasonic Transducer PCB Generator Ultrasonic Generator Board
In order to improve the complex defects of the adjustment process, this machine upgrades the circuit, program and components. After more than two years of repeated testing and factory practice, a new intelligent digital ultrasonic generator with complete functions and simple adjustment is introduced
(1) With timing function, it can realize timing switch on and off;
(2) It has frequency sweeping function to realize frequency sweeping washing;
(3) It can display ultrasonic frequency, output wattage and current at the same time, which is more intuitive and clear;
(4) It has the function of over current, over load and over heat protection;
(5) This machine uses high power IBGT amplification output to drive transducer, which makes ultrasonic wave more powerful in liquid cavitation;
(6) This machine adopts PWM control chip to realize high efficiency dynamic response;
1. Timing range: 0-60 minutes 2. Ambient temperature: 0-40 ℃. 3. Relative humidity: 40% - 90%. 4. Maximum temperature: 60 ℃. 5. Adjustment range: 2% - 100% (press pause when shutdown for a short time)
Type |
Power(W) |
Frequency (KHz) |
UCE-220V-PCB200W |
200 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz,165khz,200khz |
UCE-220V-PCB300W |
300 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz |
UCE-220V-PCB400W |
400 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB500W |
500 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB600W |
600 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
