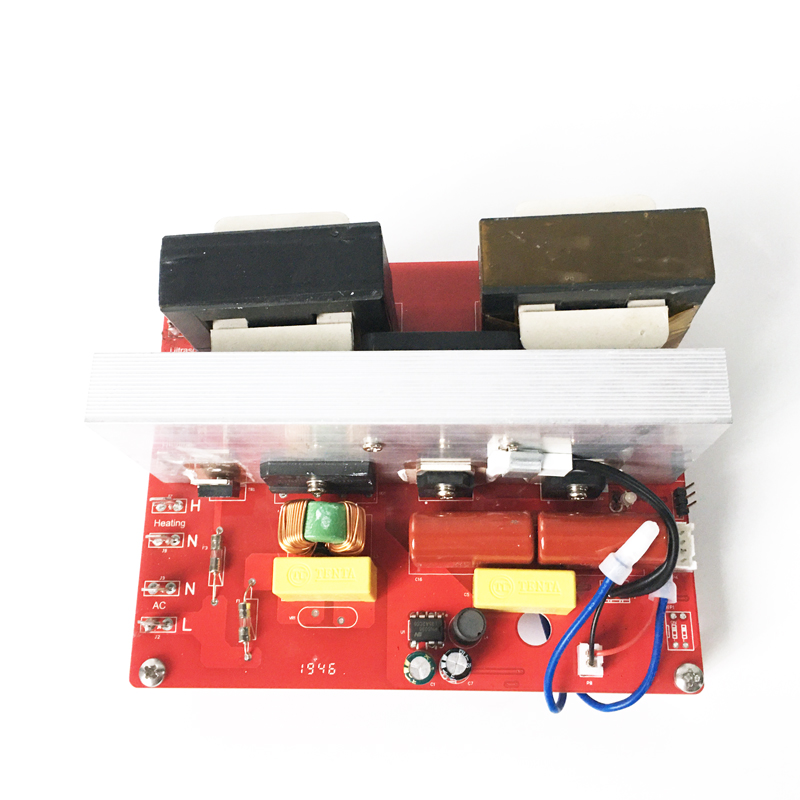

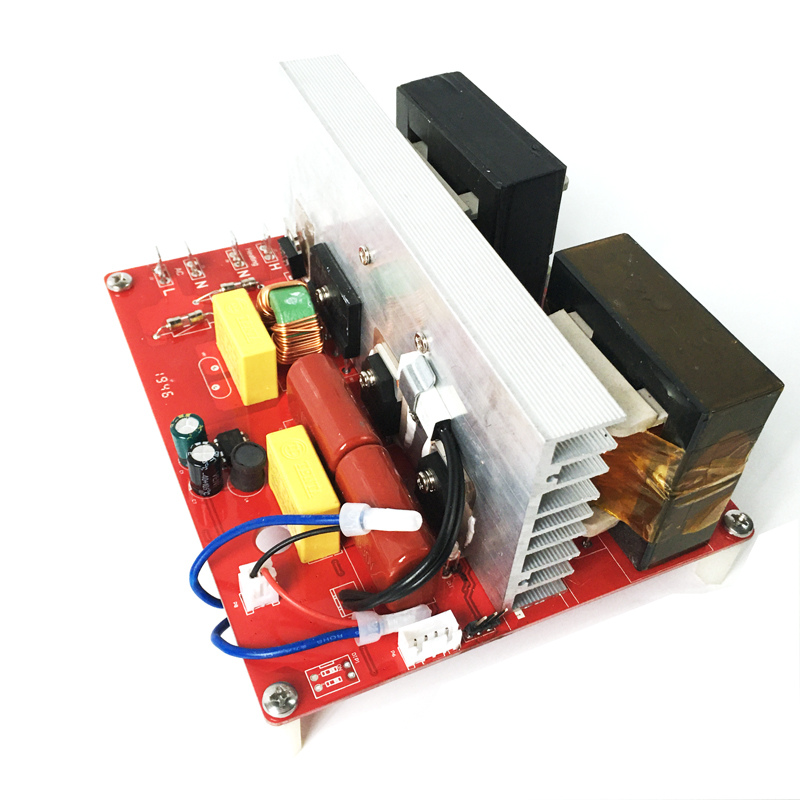

120khz Ultrasound power supply circuit board
Ultrasonic generator, also known as ultrasonic driving power supply, electronic box and ultrasonic controller, is an important part of high-power ultrasonic system.
The function of ultrasonic generator is to convert electricity into high frequency alternating current signal matched with ultrasonic transducer and drive ultrasonic transducer to work. Considering the conversion efficiency of high-power ultrasonic power supply, the circuit form of switching power supply is generally adopted.
Ultrasonic generator is mainly used in ultrasonic cleaning machine, ultrasonic vibration plate and ultrasonic cleaning line. It is suitable for electronic, hardware, clock, electroplating, stainless steel, ceramics, lighting, automobile industry, tableware disinfection, precision instruments, optics and other industries. It has the characteristics of high efficiency, low cost, thorough cleaning, no dead corner and strong practicability.
Type |
Power(W) |
Frequency (KHz) |
UCE-220V-PCB200W |
200 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz,165khz,200khz |
UCE-220V-PCB300W |
300 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz |
UCE-220V-PCB400W |
400 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB500W |
500 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB600W |
600 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
