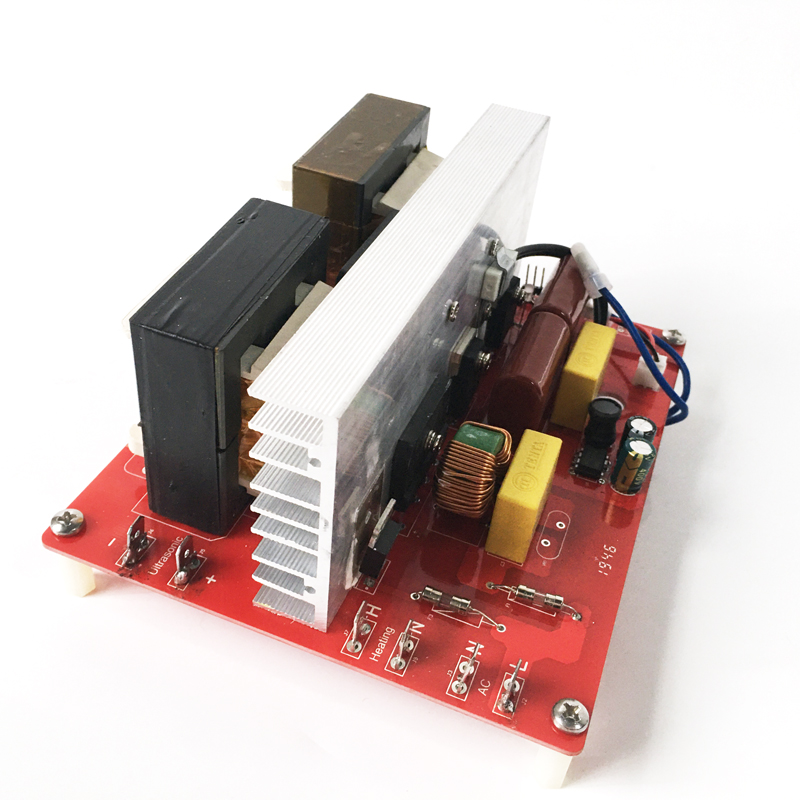

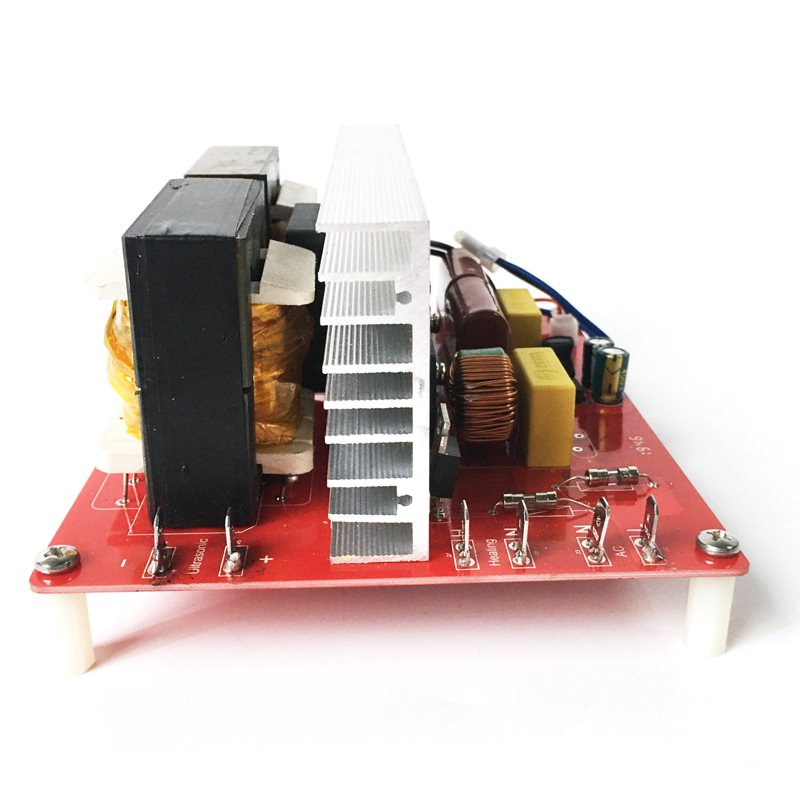

The circuit adopts advanced separate excitation integrated circuit design, automatic frequency sweeping, and conversion efficiency up to 98%. The power part adopts Japanese Mitsubishi module, with stable and strong output. The operation surface is equipped with ammeter, power can be visually adjusted, and has over-current thermal protection function, no-load or short circuit can be automatically protected, without damaging the generator, and can be matched with any transducer.



High power generator group: when the ultrasonic power exceeds 3000W, multiple generators are required to be used in combination. It can be installed in the electric cabinet according to the requirements, which is beautiful and elegant.

Type	Power（W）	Frequency (KHz)
UCE-220V-PCB200W	200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable 50khz,54khz,60khz,68khz,80khz,90khz 100khz,120khz,135khz,165khz,200khz
UCE-220V-PCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable 50khz,54khz,60khz,68khz,80khz,90khz 100khz,120khz,135khz
UCE-220V-PCB400W	400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-220V-PCB500W	500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-220V-PCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
