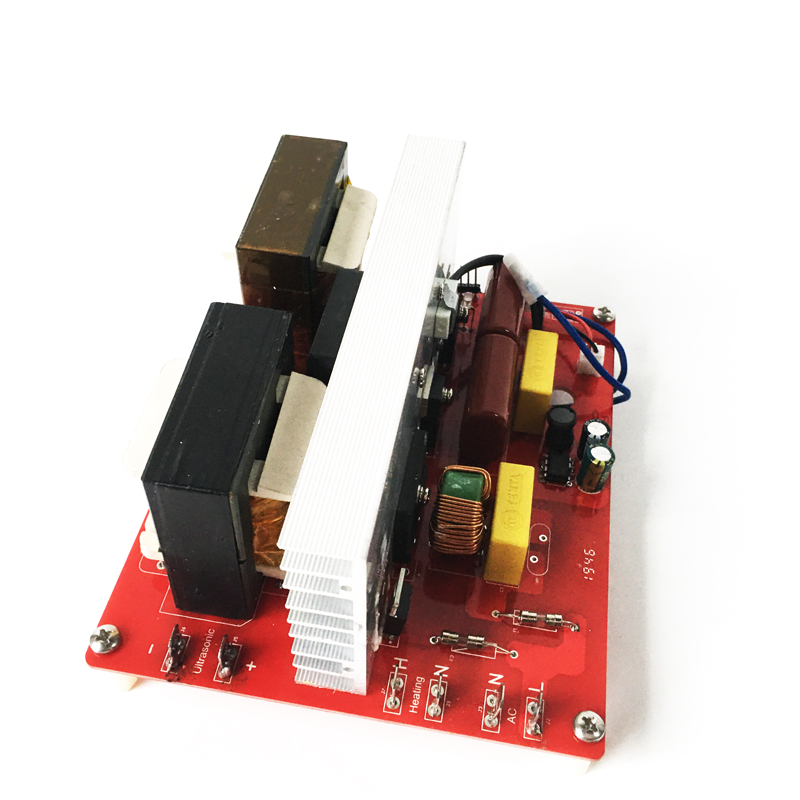

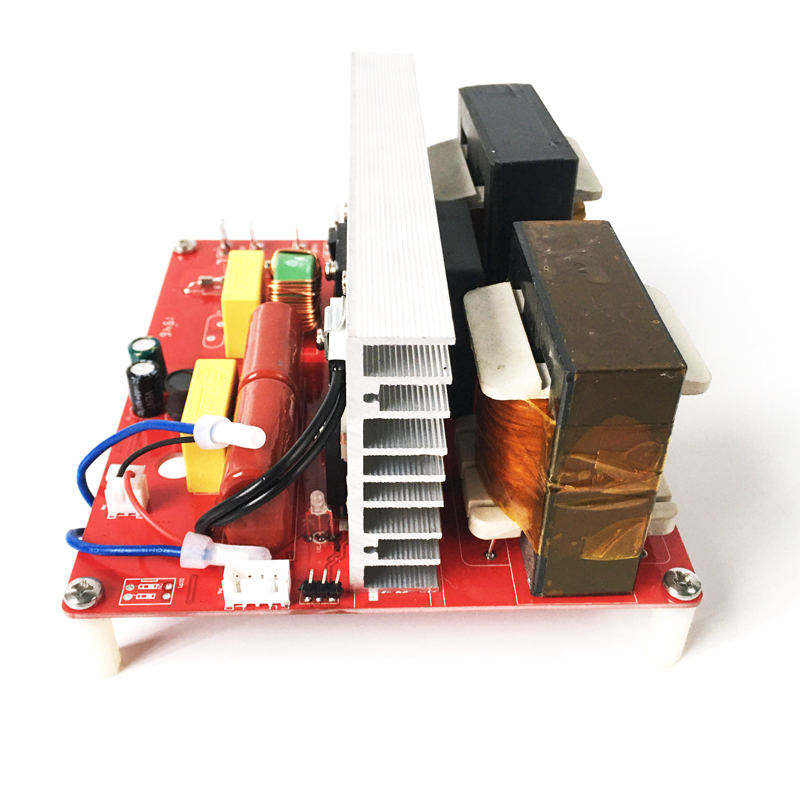

28khz Ultrasonic Sound Generator Kit Ultrasonic Transducer Circuit
Ultrasonic generator is mainly used for ultrasonic cleaning machine, ultrasonic vibration plate and ultrasonic cleaning line. It is suitable for electronics, hardware, clock, electroplating, stainless steel, ceramics, lighting, automobile industry, tableware disinfection, precision instruments, optics and other industries. It has the characteristics of high efficiency, low cost, thorough cleaning, no dead angle and strong practicability.
1. Sweep function: Advanced sweep circuit in the international market, effectively protect the shock board;
2. IGBT power output components are all imported devices, with the advantages of small size, high power, fast response and so on;
3. Power tube: the imported 50A / 1200V tube is used to eliminate the possibility of tube burning;
4. The unique sealing and anti-corrosion technology ensures the long-term stable and reliable operation of the internal circuit board;
5. The output power of the new external excitation control circuit is more than 98%, which greatly improves the ultrasonic cavitation density;
6. The output current is sine wave, which can extend the service life of transducer and generator;
7. Wide range sweep frequency: 25khz-40khz adjustable, suitable for all kinds of transducers;
8. Constant output design, small output current ripple, more stable output, protect the transducer from damage;
9. Output over-current, short circuit protection, can protect the generator power tube.
Type |
Power(W) |
Frequency (KHz) |
UCE-220V-PCB200W |
200 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz,165khz,200khz |
UCE-220V-PCB300W |
300 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz |
UCE-220V-PCB400W |
400 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB500W |
500 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB600W |
600 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
