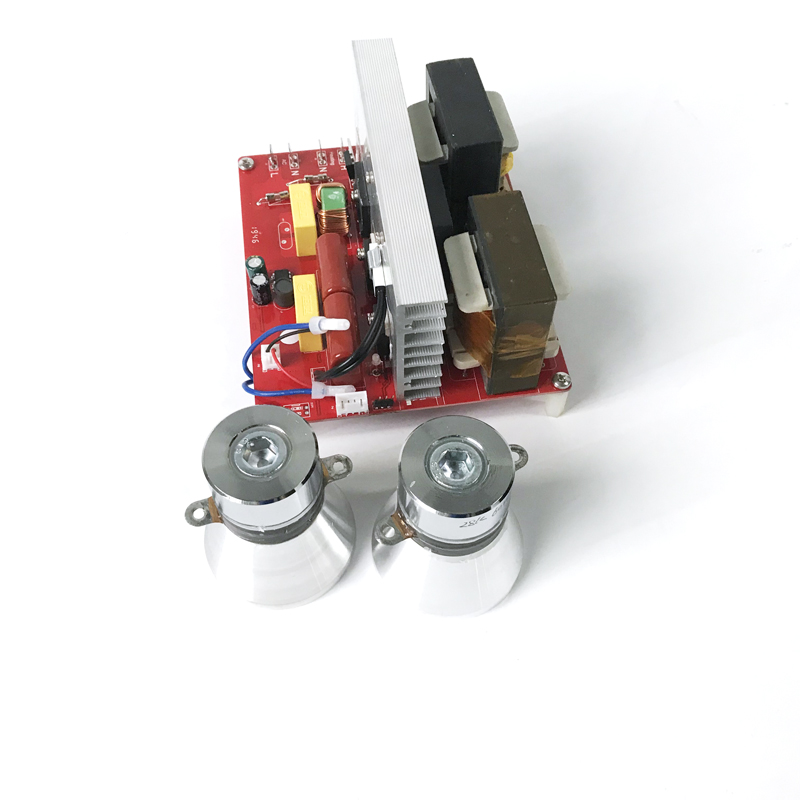

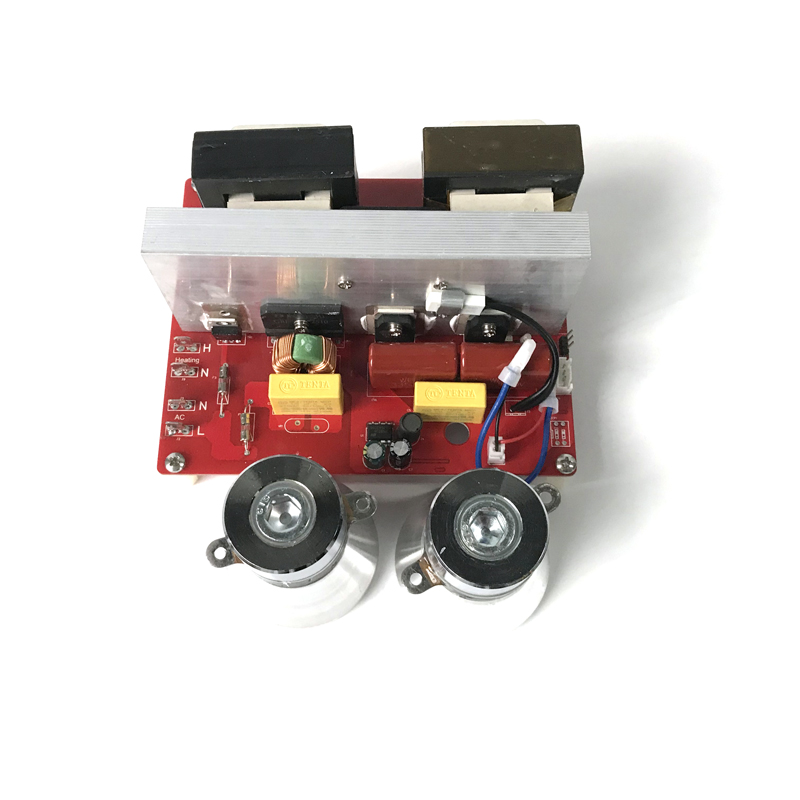

40khz Ultrasonic Generator Kit for PCB Driver Circuit Board
Driving mode: Fuji IGBT (2mbi150va-060-50600v) module is adopted for driving; 150A super large load, high voltage and current resistance; reliable performance; low failure rate; stable output.
Frequency range: 25kHz ~ 40KHz.
Power range: automatic frequency sweep function. 10% - 100% stepless adjustable within the allowable power range.
Power control: the thyristor of Japan's third society is used for power regulation, with stable performance.
Internal structure: unique anti-corrosion design, not affected by the working environment, suitable for all kinds of working sites.
Protection mode: vibrator short circuit protection, leakage protection and other functions. The advanced circuit, complete structure and sensitive and reliable integrated control system ensure the stable operation of ultrasonic cleaning machine under various loads. The generator is small in size, novel in appearance, and easy to operate. The quality and technical level of the generator are comparable to those of the same kind of foreign products. Once launched, it has been paid attention to by peers and welcomed by the majority of users. All kinds of ultrasonic generators can work independently or in parallel, so as to complete large-scale cleaning project. The maintenance is simple. The cooling fan is installed in the cabinet to ensure the safety of long-term work.
Type |
Power(W) |
Frequency (KHz) |
UCE-220V-PCB200W |
200 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz,165khz,200khz |
UCE-220V-PCB300W |
300 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz |
UCE-220V-PCB400W |
400 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB500W |
500 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB600W |
600 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
