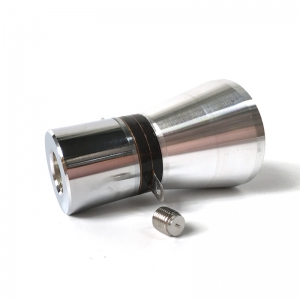

20k100W PZT8 ultrasonic transducer with hole /free studs
Ultrasonic Cleaning transducer,ultrasonic transducer for cleaner,ultrasonic transducer,ultrasonic transducers,piezoelectric transducer,piezo transducer,BLT ultrasonic transducer,20k100W PZT8 ultrasonic cleaning transducer
Item ID #03920010427
UCEultrasonic: ||
List Price: $18.00€18.00£11.11AU$17.02CA$17.05S$22.20
Sale: $11.00€11.00£6.79AU$10.40CA$10.42S$13.57
Quantity: Unit(s)
Description

20khz100W PZT8 ultrasonic cleaning transducer

20k100W PZT8 ultrasonic cleaning transducer
Ultrasonic Cleaning transducer,ultrasonic transducer for cleaner,ultrasonic transducer,ultrasonic transducers,piezoelectric transducer,piezo transducer,BLT ultrasonic transducer,ultrasonic sensor ,ultrasonic cleaning part ,ultrasonic energy concerter ,ultrasonic tubular transducer for cleaning,ultrasonic transducer water proof,Ultrasonic  transverter,high frequency power transducer,ultrasonic high power transducer,ultrasonic high frequency transducer,high frequency cleaning transducer

Specifications:

Main Features:
1. High mechanical quality and excellent electro-acoustic conversion efficiency, providing a high output amplitude.
2. Piezoelectric element offer a high speed of vibration. Through bolt-on mounting, mechanical intensity and amplitude have been improved.
3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity. Lower resonant impedance , ensuring high conversion efficiency.
5. Bolt-on mounting gives the fast, easy installation and high reliability.

Application:
•Strong cavitations,powerful and effective, quick detergence.
•Automotive and aerospace industry,mechanical industry,plating industry etc.

Data in detail:
Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)
Static Capacity
(pF)±10%
Input Power(W)
UCE-UT-20100
PZT-8

94

900

20

10-20

5200

100

Payment terms:

Prepaid by Bank/ Paypal/ Western union are acceptable

Shipping Indications:

HKDHL: 3-7days
BEIJINGDHL: 3-5days
UPS:3-5days
FEDEX:1-5days
HKFEDEX:3-7days
EMS:7-15days
Chinaair post (within 2Kg): 15-18days
ChinaPost Air Paracel: 35-60days (above 2kg)
20k100W PZT8 ultrasonic cleaning transducer
Shipping Address:

If your shipping address is no register at Paypal or you paid us by bank,please feel free email to us uce@ultra-piezo.com for address & phone &receipt name in detail to assure the material will be arrived you in time and safely,we count on your cooperation.

Products Warranty:

The material which we sales will be for one year free maintain if caused by quality itself problem,and to sure operation in correct methods.
If the products damaged owing to your uncorrected use,we will refuse the returned and will be required charge for maintain or replace,please understand.
Don’t mail anything back to us before without any communication with our service,thank you!

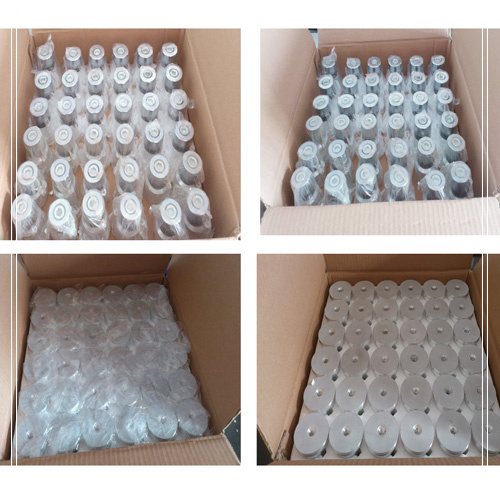

Packing Detail:
20k100W PZT8 ultrasonic cleaning transducer
20k100W PZT8 ultrasonic cleaning transducer
20k100W PZT8 ultrasonic cleaning transducer
20k100W PZT8 ultrasonic cleaning transducer
