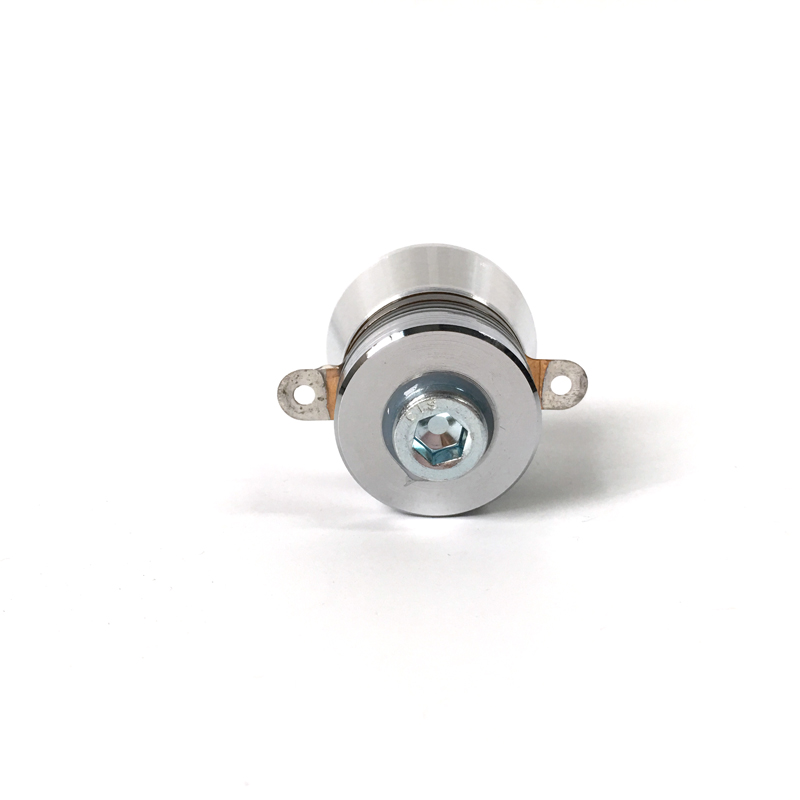

40k50W PZT4 Ultrasonic cleaning transducer
Specifications:
Main Features:
1. High mechanical quality and excellent electro-acoustic conversion efficiency, providing a high output amplitude.
2. Piezoelectric element offer a high speed of vibration. Through bolt-on mounting, mechanical intensity and amplitude have been improved.
3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity. Lower resonant impedance , ensuring high conversion efficiency.
5. Bolt-on mounting gives the fast, easy installation and high reliability.
Application:
•Strong cavitations,powerful and effective, quick detergence.
•Automotive and aerospace industry,mechanical industry,plating industry etc.
Data in detail:
|
Type |
Length（mm） |
Weight（g） |
Frequency（KHz） |
Resonance Impedance
（Ω） |
Static Capacity
（pF）±10% |
Input Power（W） |
UCE-UT-4050
PZT-4 |
54
|
260
|
40
|
10-20
|
4100
|
50
|
