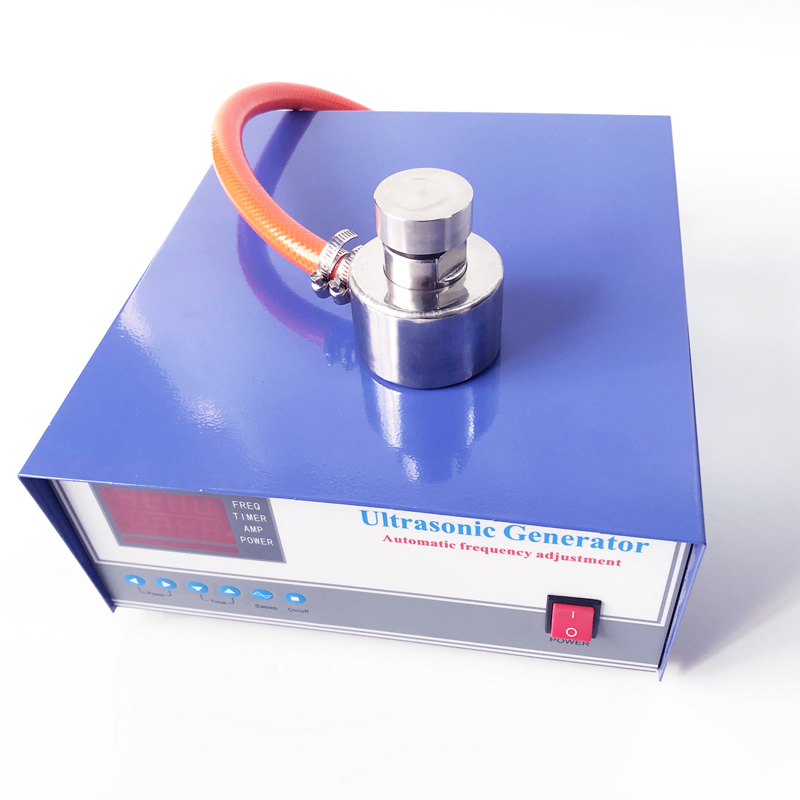

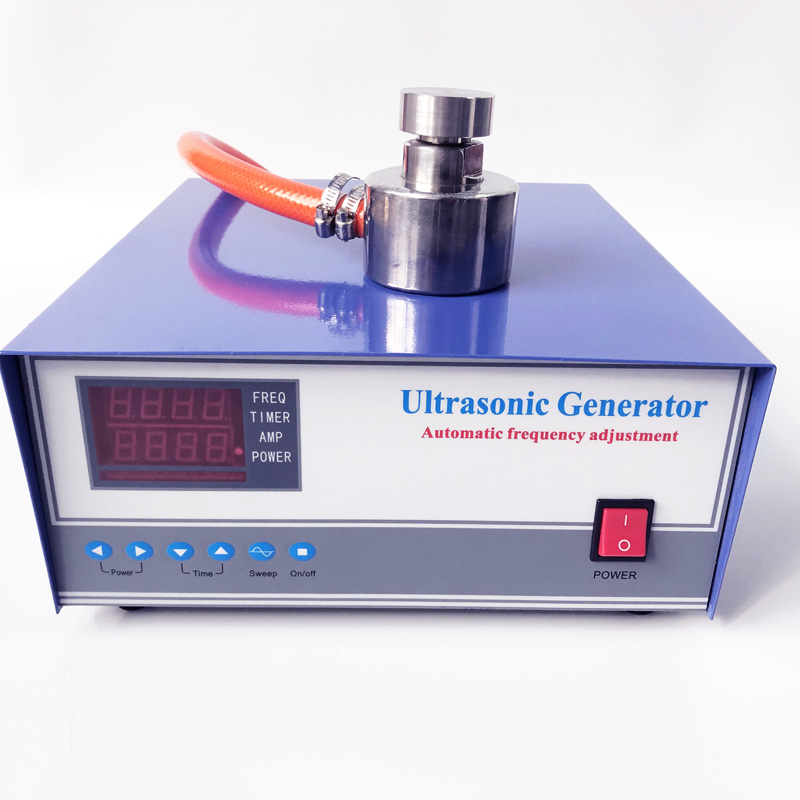

200w ultrasonic vibrating sieve power supply
Technical parameters of ultrasonic generator power supply:
1. Power input: AC220V ± 10% 50 ~ 60Hz
2. Whole machine current: ≤ 0.6A
3. High frequency current: ≤ 0.4A
4. Working frequency: 33khz
5. Working mode: continuous, pulse
6. Ambient temperature: - 10 ~ 35 ℃
Description of ultrasonic generator: the ultrasonic generator adopts the world's leading structure of separate excitation oscillation circuit. Compared with the self excitation oscillation circuit, it consumes less, has higher efficiency and higher output energy (more than 10%).
The ultrasonic amplification circuit adopts linear amplification circuit and switching power supply circuit. Advantages of switching power supply circuit: high conversion efficiency, so high-power ultrasonic power supply adopts this form.
Ultrasonic generator, also known as ultrasonic driving power supply, electronic box and ultrasonic controller, is an important part of high-power ultrasonic system. The function of the ultrasonic generator is to convert the commercial power into the high-frequency AC signal matched with the ultrasonic transducer and drive the ultrasonic transducer to work. High power ultrasonic power supply generally adopts the circuit form of switching power supply considering the conversion efficiency. Ultrasonic power supply is divided into self excitation power supply and other excitation power supply. Self excitation power supply is called ultrasonic analog power supply, and other excitation power supply is called ultrasonic generator.
Type |
Power |
Frequency |
UCE-ZDDY100W |
100W |
33KHZ |
UCE-ZDDY200W |
200W |
33KHZ |
UCE-ZDDY300W |
300W |
33KHZ |
