The selection of oscillators requires the same oscillation functions as possible (bandwidth, quality factor, resonant frequency, dynamic impedance), There is no parasitic circle as far as possible or there is no parasitic circle near the resonance point. It can analyze and measure the impedance characteristics of transducer, incoming material inspection, bonded transducer and cleaning machine. The resonance frequency and static capacitance of the machine can be calibrated to match the power supply, It can analyze the new resonance point, impedance, capacitance and oscillation mode of the whole machine

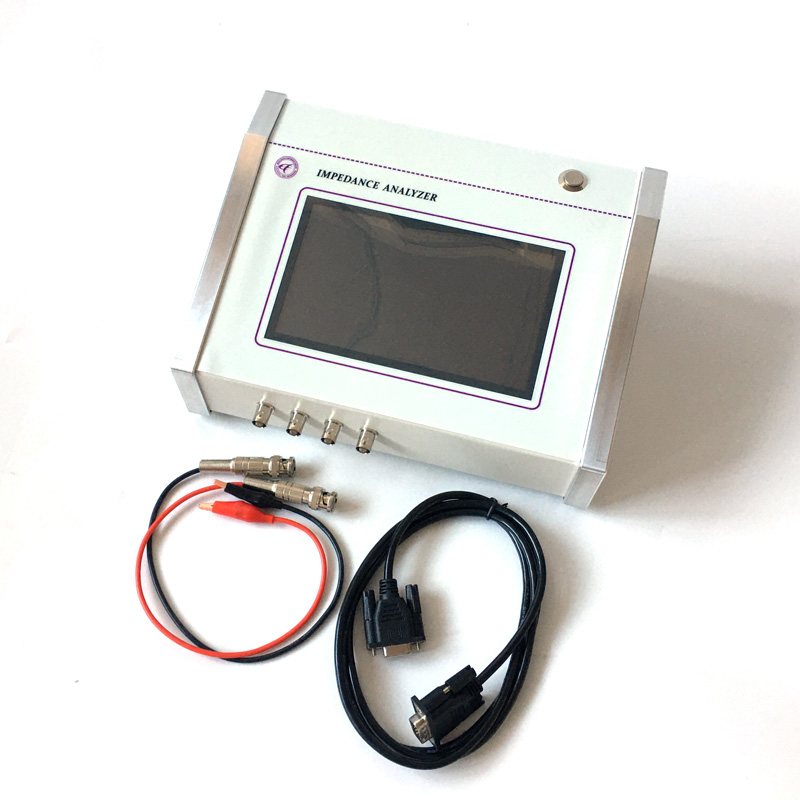

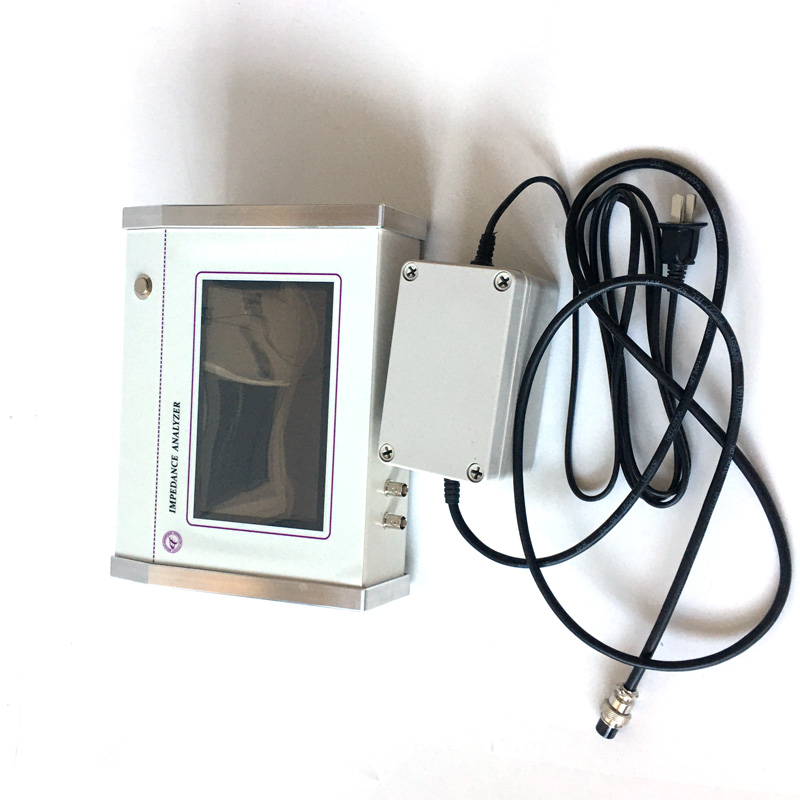

Characteristics of impedance analyzer

1. Basic accuracy: 0.05 [%]

2. Frequency accuracy: ± 0.005 [%]

3. Measurement parameters: Z, l, C, R, Q, D, y, G, B, X

4. Output: 10mV to 1V RMS, 200uA to 20mA RMS

5. Display format: Series / parallel circuit, or north-south pole type

6. Graphic analysis form: scan by frequency and DC bias source with two optional parameters

7. Form of electric meter: it can be used as standard LCR meter

8. To be tested: component connection

9. There are many optional accessories for different test requirements

10. Consumption factor: ± 0.0005 (1 + D * D2)

11. Quality elements: ± 0.05 [%] (Q + 1 / Q)
