It is mainly used for the detection of piezoelectric devices and equipment. It is a comprehensive solution for measuring and analyzing piezoelectric components and equipment. It can evaluate and test the parameter characteristics of piezoelectric devices quickly and conveniently.

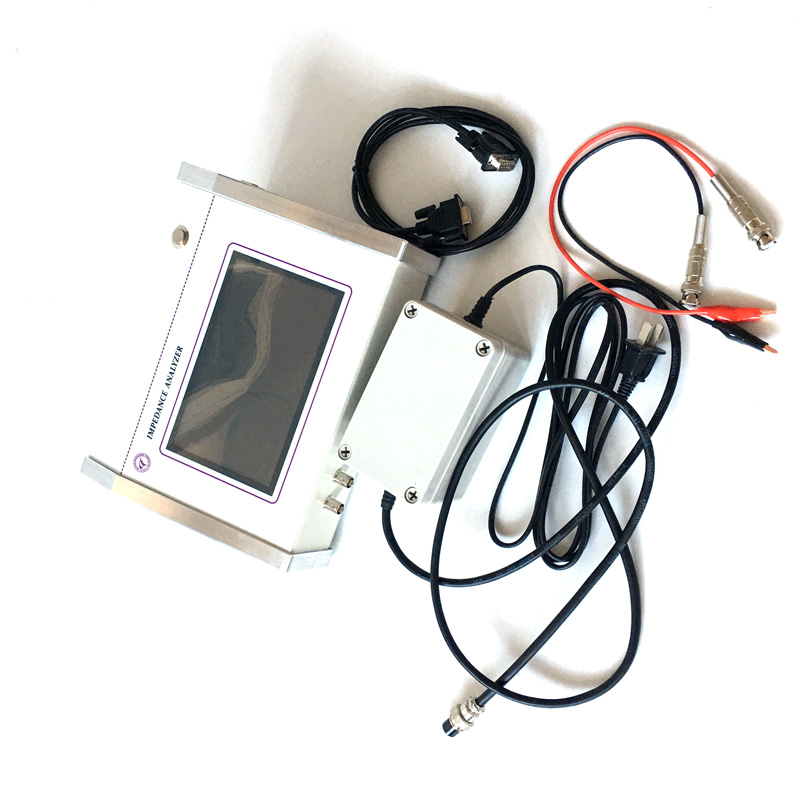

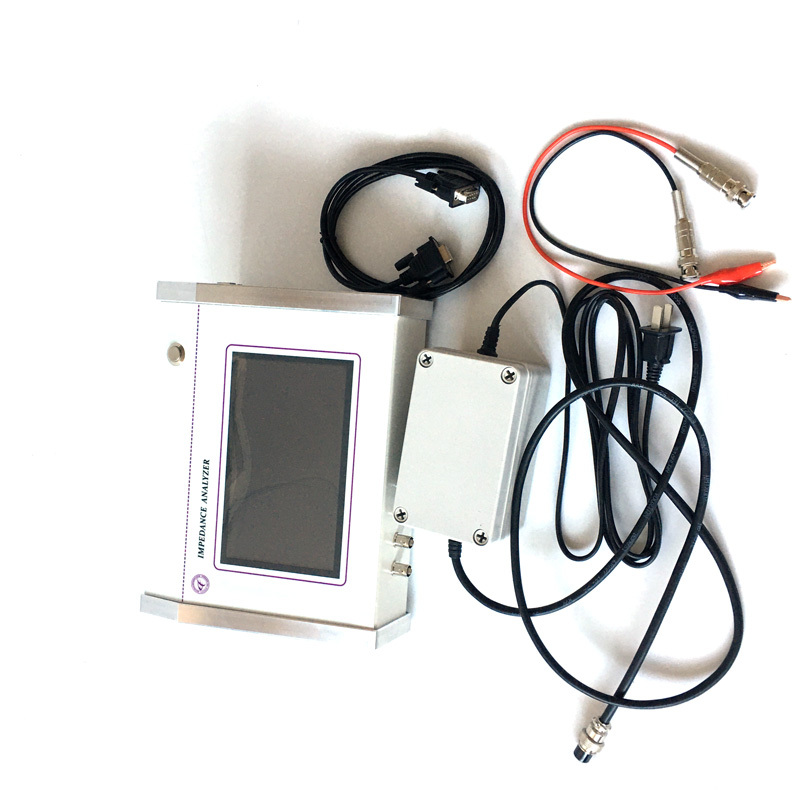

Transducer characteristic analyzer is a kind of equipment which can replace the imported instrument according to some technical indexes which can't be seen directly in the production process of ultrasonic equipment, but have an important impact on the product quality. His characteristics are: easy to use, the combination of indicators and graphics, accurate parameters, low price, very strong guidance for production.

The transducer characteristic analyzer is mainly used for the measurement of transducer characteristics of various ultrasonic devices, including piezoelectric ceramics, transducer, ultrasonic cleaning machine, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic pulverizer, ultrasonic atomization, ultrasonic tooth cleaning, reversing radar, ultrasonic ranging, ultrasonic emulsification, ultrasonic descaling, ultrasonic motor, ultrasonic flowmeter, etc There are devices that use ultrasound.

The measurement of transducer characteristics of piezoelectric devices is a prerequisite for the correct use of devices. For piezoelectric devices, the main parameters can be obtained by transducer characteristic analyzer, including resonance frequency FS, anti resonance frequency FP, half power point F1 and F2, maximum admittance Gmax, static capacitance C0, dynamic reactance R1, dynamic capacitance C1, dynamic inductance L1, free capacitance CT, free dielectric constant, mechanical quality factor QM, electromechanical coupling coefficient keff, KP, K31, k33 Five characteristic curves of piezoelectric devices (admittance characteristic diagram, transducer characteristic characteristic diagram, admittance polar coordinate diagram, transducer characteristic polar coordinate diagram and logarithmic coordinate diagram) can be drawn.
